Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDCLVD1213EVMEVAL BOARD FOR CDCLVD1213 |
2 |
|
Datasheet |
- | Box | Obsolete | Timing | Clock Buffer | No | CDCLVD1213 | - | - | Board(s) |
|
BUF08821EVM-USBEVAL BOARD FOR BUF08821 |
2 |
|
Datasheet |
- | Box | Obsolete | Video | Amplifier, Single | No | BUF08821 | 8 Programmable Gamma Channels and One Programmable VCOM Channel | - | Board(s), Cable(s) |
|
THEVA234-V3EVAL BOARD FOR THCV234 |
2 |
|
Datasheet |
THine® V-by-One®HS | Box | Active | Interface | V-by-One®HS to LVDS | - | THCV234 | Receiver | On-Board LEDs | Board(s) |
|
XR20M1170L16-0A-EBEVAL BOARD FOR XR20M1170 |
2 |
|
Datasheet |
- | Box | Not For New Designs | Interface | UART | No | XR20M1170 | - | I2C/SPI Interface(s) | Board(s) |
|
THEVA220-V2EVAL BOARD FOR THCV220 |
11 |
|
Datasheet |
THine® V-by-One®HS | Box | Active | Interface | V-by-One®HS to CMOS/TTL | - | THCV220 | Receiver | On-Board LEDs | Board(s) |
|
EV28G36AMCP8026 QFN40 3SH EVB |
10 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | Board(s) |
|
THEVA215-V2EVAL BOARD FOR THCV215 |
2 |
|
Datasheet |
THine® V-by-One®HS | Box | Active | Interface | LVDS to V-by-One®HS | - | THCV215 | - | - | Board(s) |
|
THEVA216-V2EVAL BOARD FOR THCV216 |
2 |
|
Datasheet |
THine® V-by-One®HS | Box | Active | Interface | V-by-One®HS to LVDS | - | THCV216 | - | - | Board(s) |
|
THEVA218-V2EVAL BOARD FOR THCV218 |
2 |
|
Datasheet |
THine® V-by-One®HS | Box | Active | Interface | V-by-One®HS to CMOS/TTL | - | THCV218 | 2-Channel (Dual) | - | Board(s) |
|

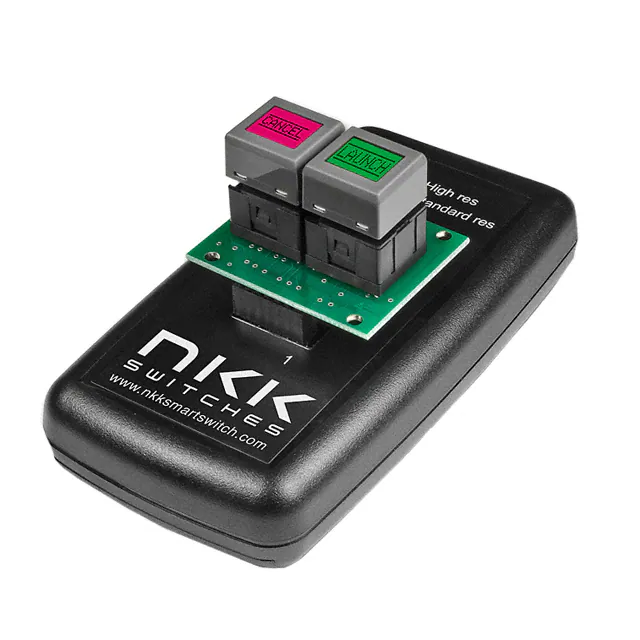

IS-DEV KIT-5CEVAL BOARD FOR IS15SBFP4RGB |
3 |
|
Datasheet |
SmartDisplay™ | Box | Obsolete | Electromechanical | Switches with Programmable Display | - | IS15SBFP4RGB | 2 Compact Switches, PC Board with Flash Memory | - | Board(s), Cable(s), Power Supply |
|

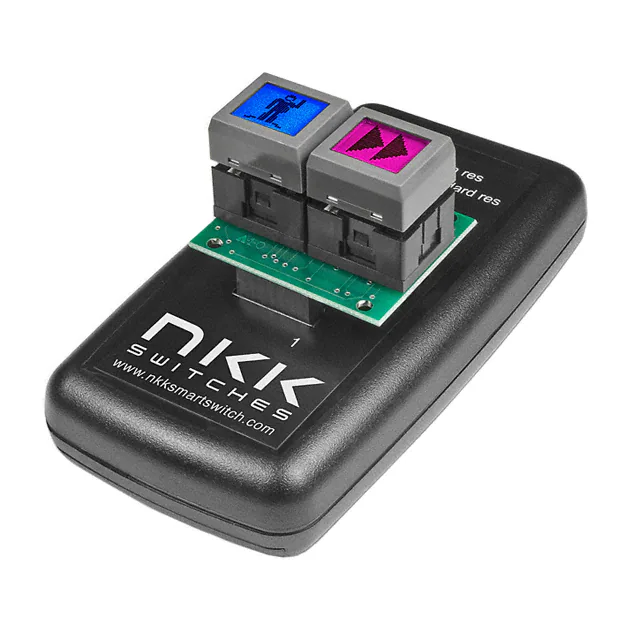

IS-DEV KIT-5EVAL BOARD FOR IS15ABFP4RGB |
3 |
|
Datasheet |
SmartDisplay™ | Box | Obsolete | Electromechanical | Switches with Programmable Display | - | IS15ABFP4RGB | 2 LCD Switches, PC Board with Flash Memory | - | Board(s), Cable(s), Power Supply |
|
IS-DEV KIT-5DEVAL BOARD FOR IS01BFRGB |
3 |
|
Datasheet |
SmartDisplay™ | Bulk | Obsolete | Electromechanical | Switches with Programmable Display | - | IS01BFRGB | 2 LCD Displays, PC Board with Flash Memory | - | Board(s), Cable(s), Power Supply |
|
XR20M1172L32-0A-EBEVAL BOARD FOR XR20M1172 |
3 |
|
Datasheet |
- | Box | Obsolete | Interface | UART | No | XR20M1172 | 2-Channel (Dual) | I2C/SPI Interface(s) | Board(s) |
|
XR20M1170G24-0A-EBEVAL BOARD FOR XR20M1170 |
2 |
|
Datasheet |
- | Box | Obsolete | Interface | UART | No | XR20M1170 | - | I2C/SPI Interface(s) | Board(s) |
|
SI5367/68-EVBEVAL BOARD FOR SI5367 SI5368 |
5 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | - | SI5367, SI5368 | - | - | Board(s), Cable(s) |
|
AC164128EVAL BOARD FOR DM240001 DSPIC33F |
5 |
|
Datasheet |
PICtail™ | Box | Obsolete | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DM240001, dsPIC33F | Motors (BLDC) | Explorer 16 Bridge Board | Board(s) |
|
BG2A-NFHEVAL BD FOR POWEREX IGBT MODULES |
16 |
|
Datasheet |
- | Bulk | Active | Power Management | IGBT Power Module Driver | No | Powerex IGBT Modules | - | - | Board(s) |
|
|
333318EVAL BOARD FOR ESP32 |
5 |
|
- |
- | Bag | Active | Display | eInk Electronic ePaper | Yes, MCU, 32-Bit | ESP32 | - | - | Board(s) |
|
|
MYD-JX8MMA7-8E2D-32Q256D-180-CEVAL BOARD FOR MYD-JX8MMA7 |
8 |
|
Datasheet |
MYD-JX8MMA7 | Bulk | Active | Reference Design | - | - | MYD-JX8MMA7 | - | - | Board(s) |
|

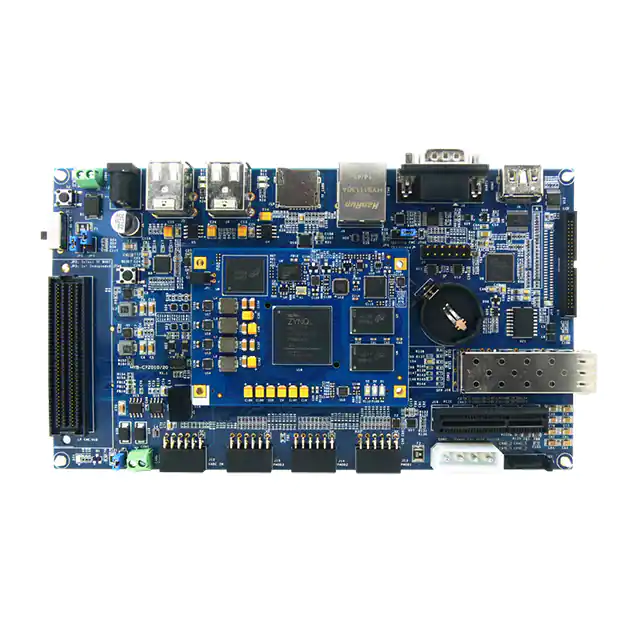

MYD-C7Z015-4E1D-766-IEVAL BOARD FOR MYD-C7Z015 |
5 |
|
Datasheet |
Zynq®-7000 | Bulk | Active | Reference Design | - | - | MYD-C7Z015 | - | - | Board(s) |
