Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

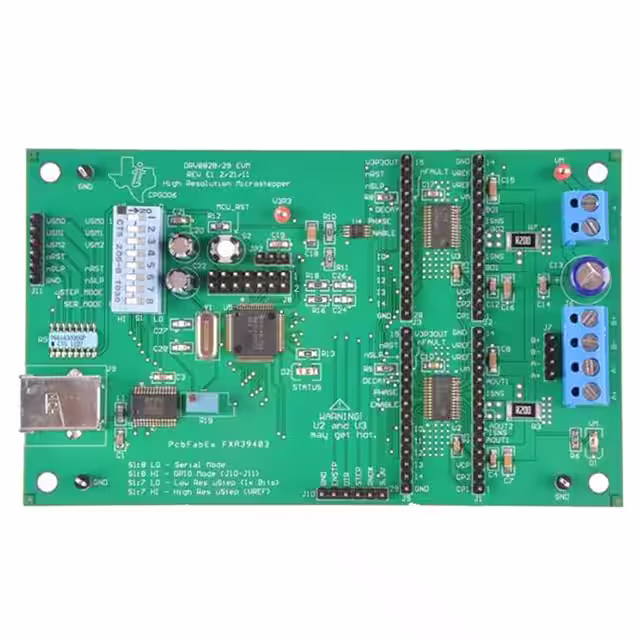

DRV8829EVMEVAL BOARD FOR DRV8829 |
3 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8829 | Single-H-Bridge Driver, 3.5A (5A Peak), 8.2V ~ 45V | - | Board(s) |
|

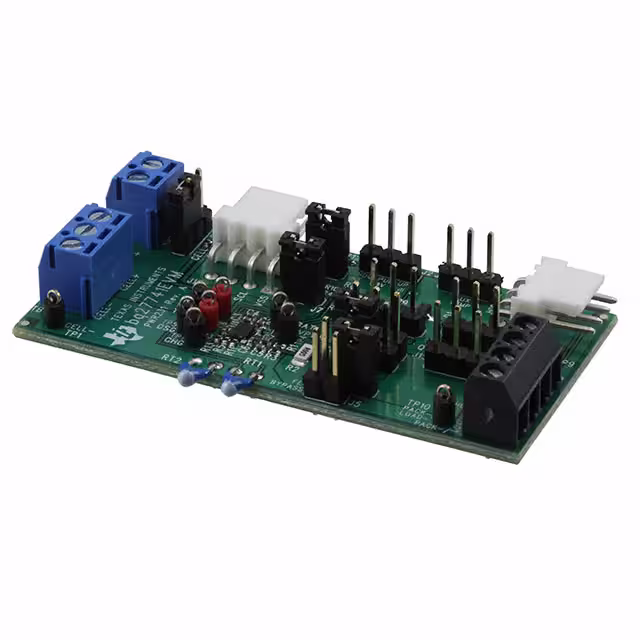

BQ27741EVMEVAL BOARD FOR BQ27741-G1 |
3 |
|
Datasheet |
Impedance Track™ | Box | Active | Power Management | Battery Gauge | - | BQ27741-G1 | - | - | Board(s) |
|

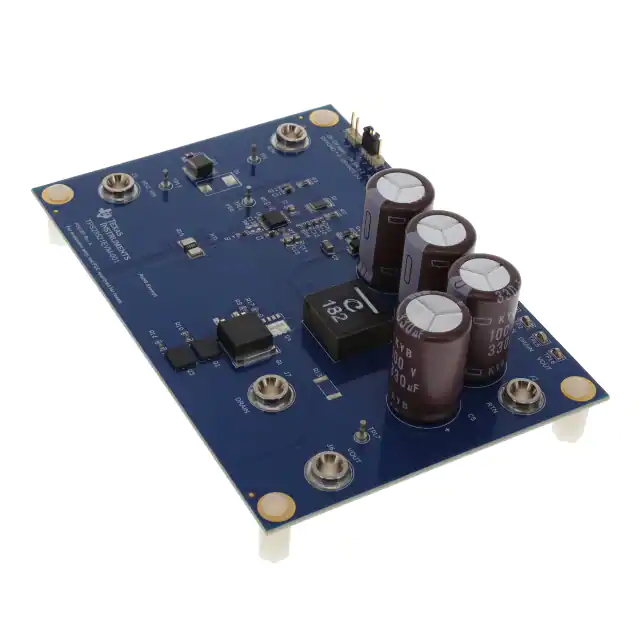

TPS23521EVM-001EVAL BOARD FOR TPS23521 |
3 |
|
Datasheet |
- | Box | Active | Power Management | Hot Swap Controller | No | TPS23521 | 36V ~ 72V Input Voltage | On-Board Test Points | Board(s) |
|

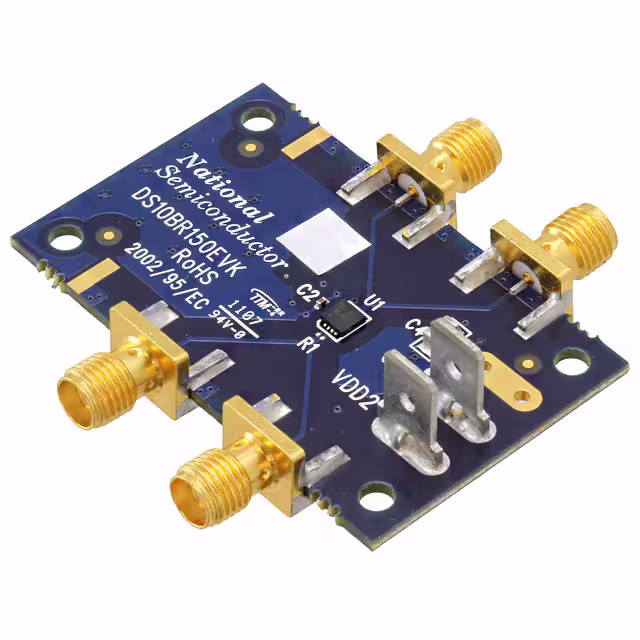

DS10BR150EVK/NOPBEVAL BOARD FOR DS10BR150 |
2 |
|
Datasheet |
- | Box | Active | Interface | LVDS, Buffer/Repeater | - | DS10BR150 | - | - | Board(s) |
|

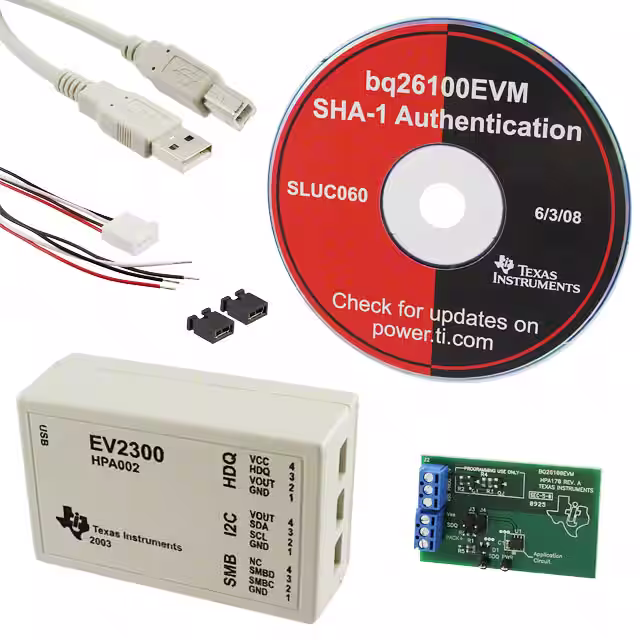

BQ26100EVMEVAL BOARD FOR BQ26100 |
2 |
|
Datasheet |
- | Box | Active | Interface | Anti Tamper and Security | No | BQ26100 | Battery Authentication | - | Board(s), Cable(s) |
|
CDCEL913PERF-EVMEVAL BOARD FOR CDCEL913PERF |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | - | CDCEL913PERF | - | - | Board(s) |
|

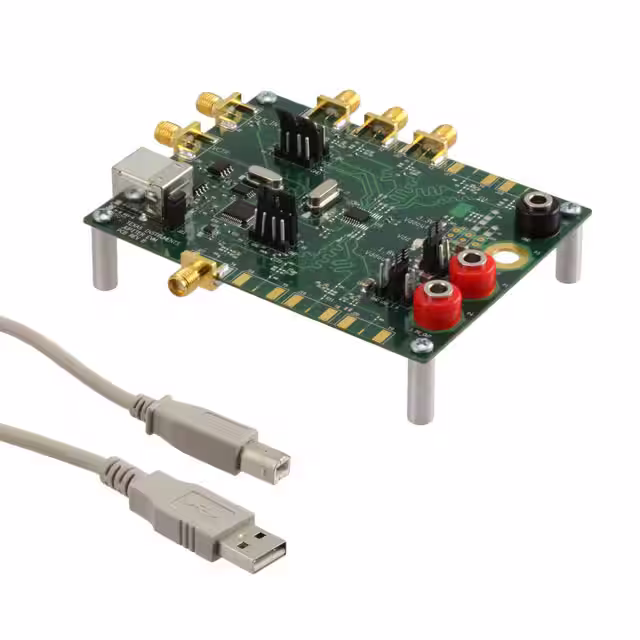

CDCEL925PERF-EVMEVAL BOARD FOR CDCE925PERF |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | - | CDCE925PERF | - | - | Board(s) |
|

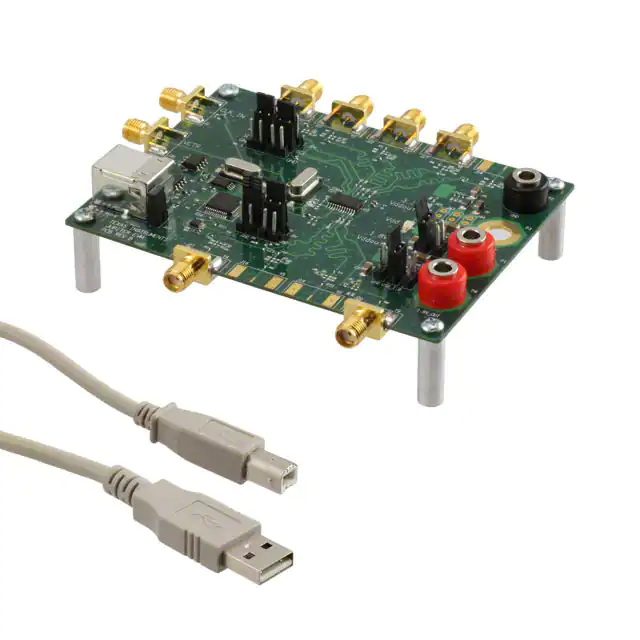

CDCEL949PERF-EVMEVAL BOARD FOR CDCEL949PERF |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | - | CDCEL949PERF | - | - | Board(s) |
|

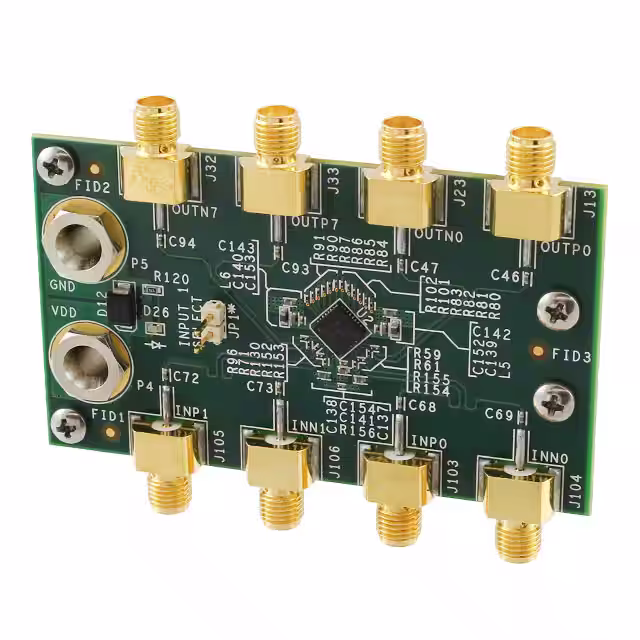

CDCLVP1208EVMEVAL BOARD FOR CDCLVP1208 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | No | CDCLVP1208 | 2 Inputs, 4 Outputs | LVPECL Output Logic | Board(s) |
|

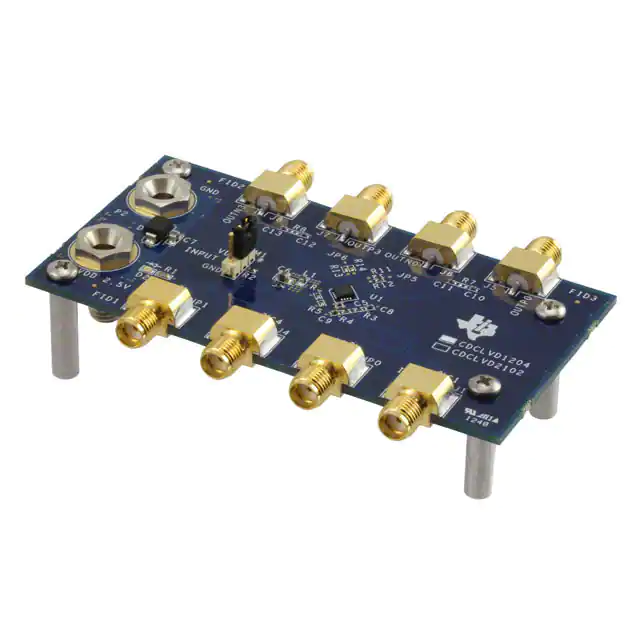

CDCLVD1204EVMEVAL BOARD FOR CDCLVD1204 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer | No | CDCLVD1204 | - | - | Board(s) |
|

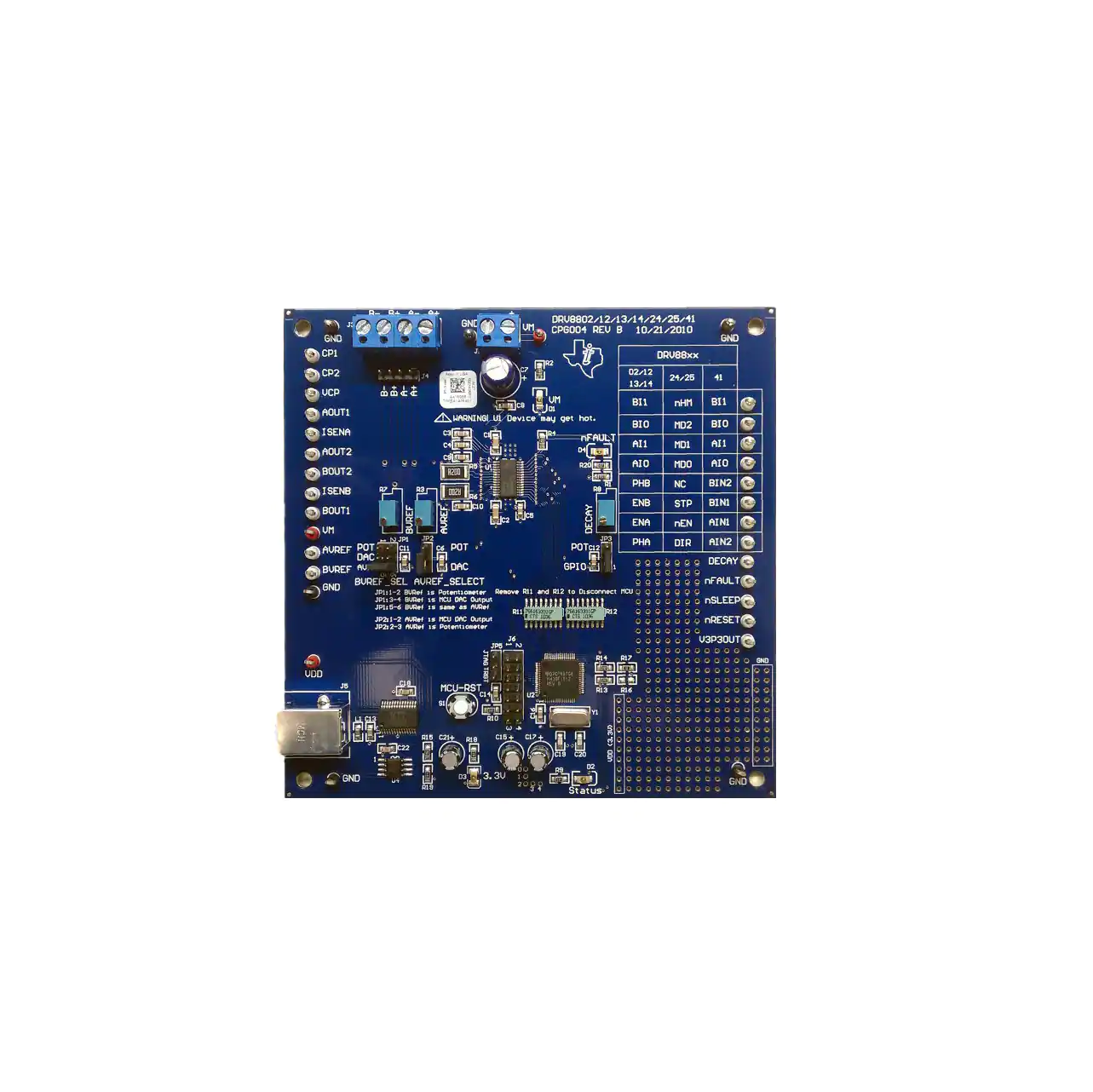

DRV8841EVMEVAL BOARD FOR DRV8841 |
2 |
|
Datasheet |
- | Box | Active | Power Management | Motor Controller/Driver | Yes, MCU, 16-Bit | DRV8841 | Dual Full-Bridge (H-Bridge) Driver with PWM Current Controller | Graphical User Interface (GUI) | Board(s) |
|

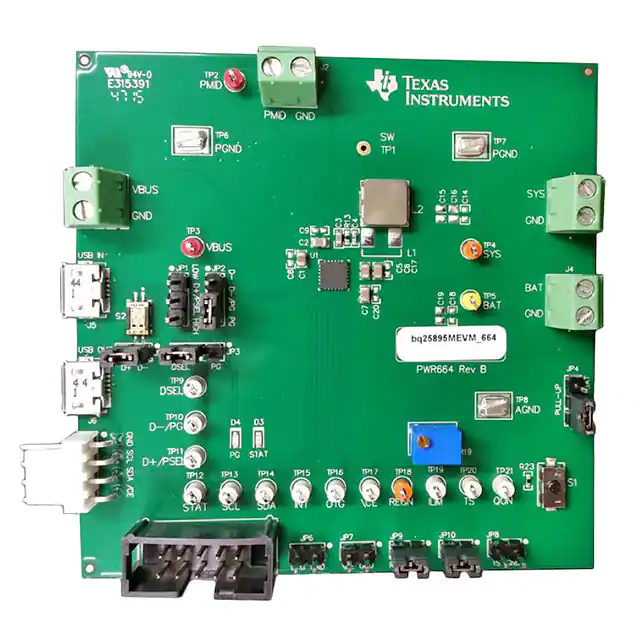

BQ25895MEVM-664EVAL BOARD FOR BQ25895M |
2 |
|
Datasheet |
- | Bulk | Active | Power Management | Battery Charger | - | BQ25895M | - | - | Board(s) |
|

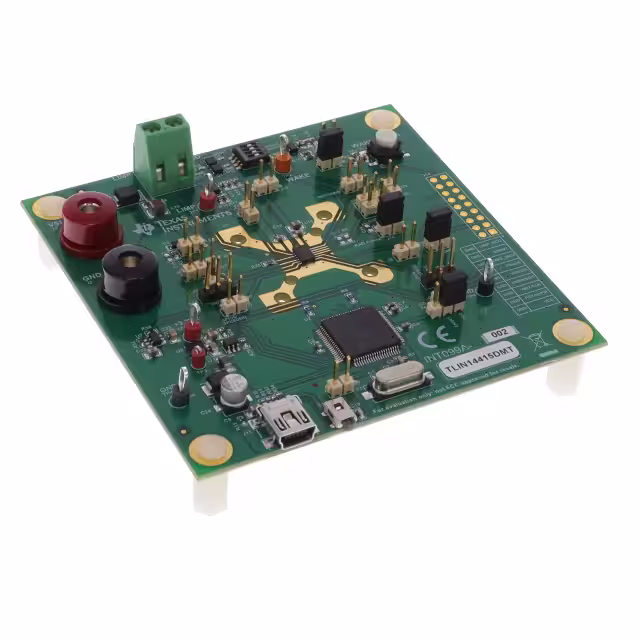

TLIN14415EVMEVAL BOARD FOR TLINX441X |
2 |
|
Datasheet |
- | Box | Active | Interface | LIN | - | TLINx441x | - | - | Board(s) |
|

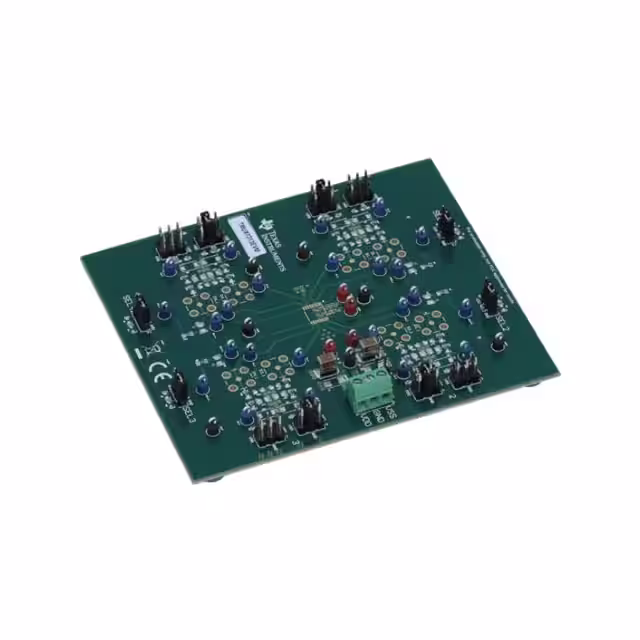

TMUX7213EVMEVAL BOARD FOR TMUX7213 |
2 |
|
Datasheet |
- | Box | Active | Interface | Switch, SPST, 1:1 | No | TMUX7213 | 4-Channel (Quad) | - | Partially Populated Board(s) - Main IC/Module/Part Not Included |
|

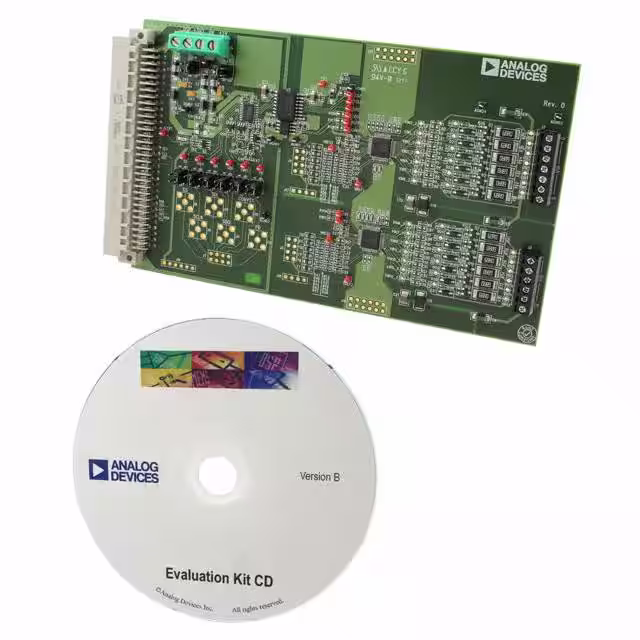

EVAL-AD7280AEDZEVAL BOARD FOR AD7280A |
4 |
|
Datasheet |
- | Box | Active | Power Management | Battery Monitor | No | AD7280A | - | SPI Interface(s) | Board(s) |
|
EVAL-ADF4151EB1ZEVAL BOARD FOR ADF4151, ADUC812 |
2 |
|
Datasheet |
- | Bulk | Active | Timing | Frequency Synthesizer | No | ADF4151, ADuC812 | 3V ~ 3.6V Input, Single Fractional-N and Integer-N PLL | - | Board(s) |
|

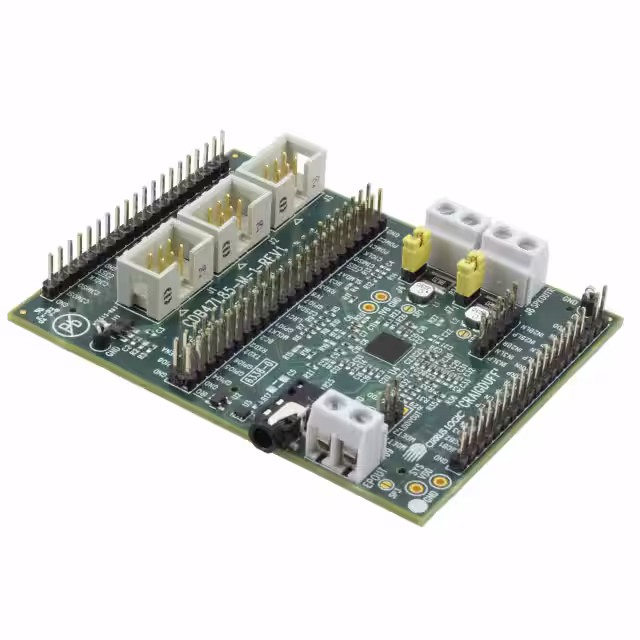

CDB47L85-M-1EVAL BOARD FOR CS47L85 |
12 |
|
Datasheet |
- | Bulk | Not For New Designs | Audio | Audio Processing | Yes, DSP | CS47L85 | - | - | Board(s) |
|

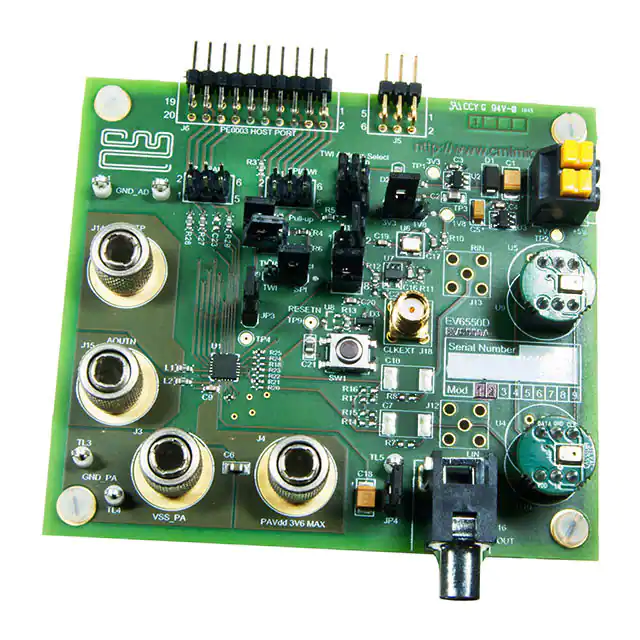

EV6550DEVAL BOARD FOR CMX655 |
10 |
|
Datasheet |
- | Box | Active | Audio | CODEC | - | CMX655 | - | - | Board(s) |
|

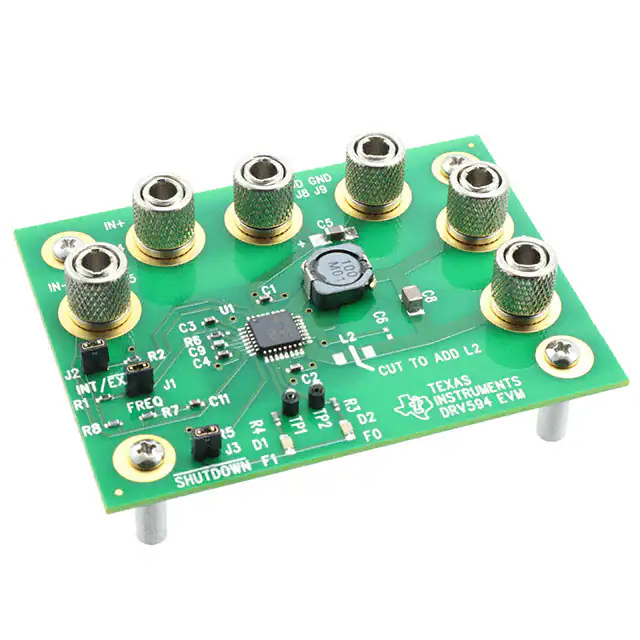

DRV594EVMEVAL BOARD FOR DRV594 |
2 |
|
Datasheet |
- | Bulk | Active | Power Management | Half H-Bridge Driver (Internal FET) | - | DRV594 | - | - | Board(s) |
|

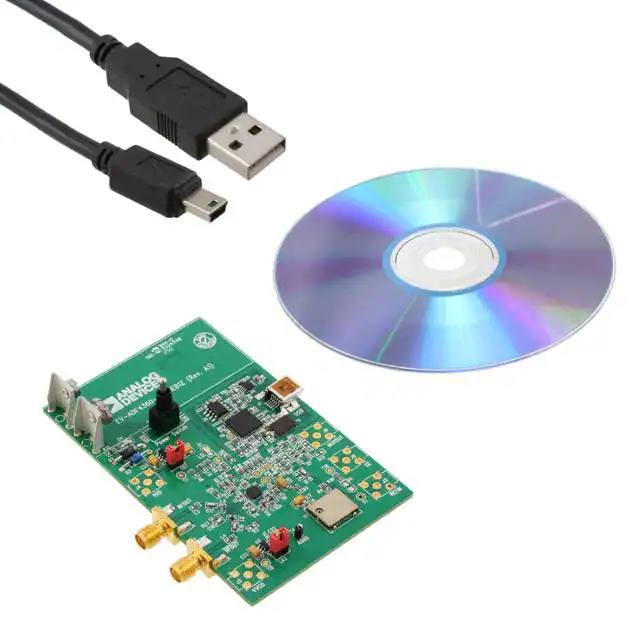

EV-ADF4360-8EB1ZEVAL BOARD FOR ADF4360-8 |
1 |
|
Datasheet |
- | Box | Active | Timing | Frequency Synthesizer | No | ADF4360-8 | Single Integer-N PLL with VCO | Differential Output | Board(s), Cable(s) |
