Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

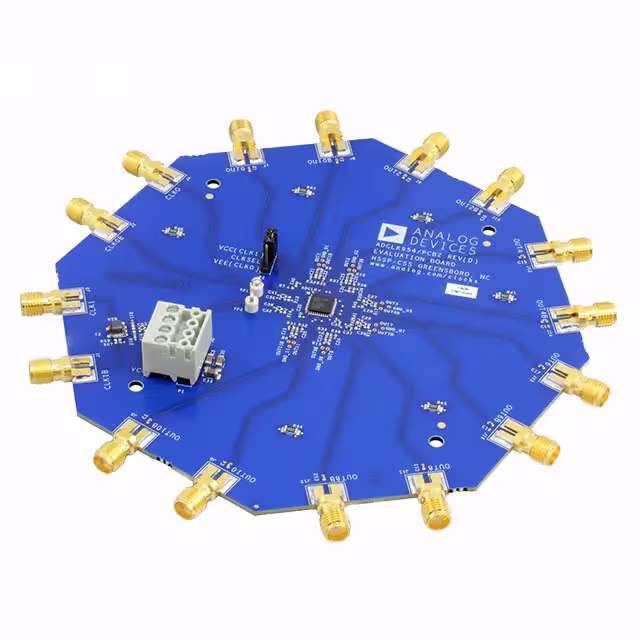

ADCLK954/PCBZEVAL BOARD FOR ADCLK954 |
0 |
|
Datasheet |
SiGe | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | No | ADCLK954 | 2 Inputs, 12 Outputs | LVPECL Output Logic | Board(s) |
|

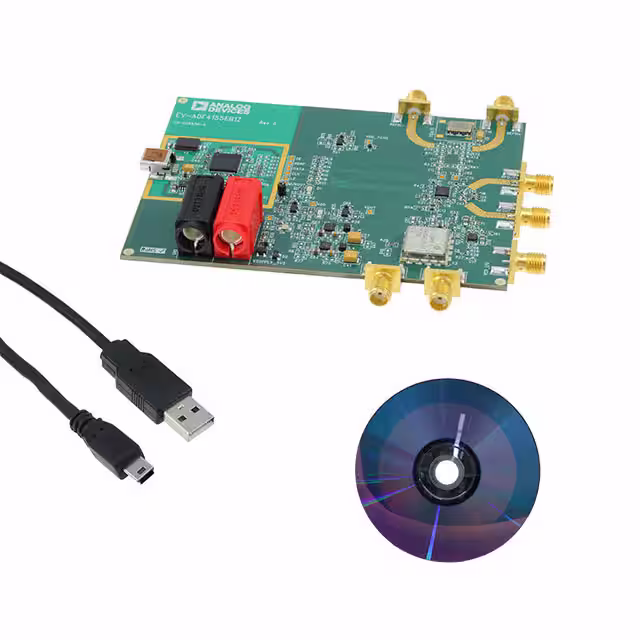

EV-ADF4155EB1ZEVAL BOARD FOR ADF4155 |
0 |
|
Datasheet |
- | Box | Active | Timing | Frequency Synthesizer | - | ADF4155 | Single Fractional-N and Integer-N PLL | USB Interface(s), Graphical User Interface (GUI) | Board(s), Cable(s) |
|
EV-RPG2-ECZEVAL BOARD FOR ADIN2299 |
6 |
|
Datasheet |
- | Bulk | Active | Interface | Ethernet | Yes | ADIN2299 | 3.3V Supply | On-Board LEDs | Board(s) |
|

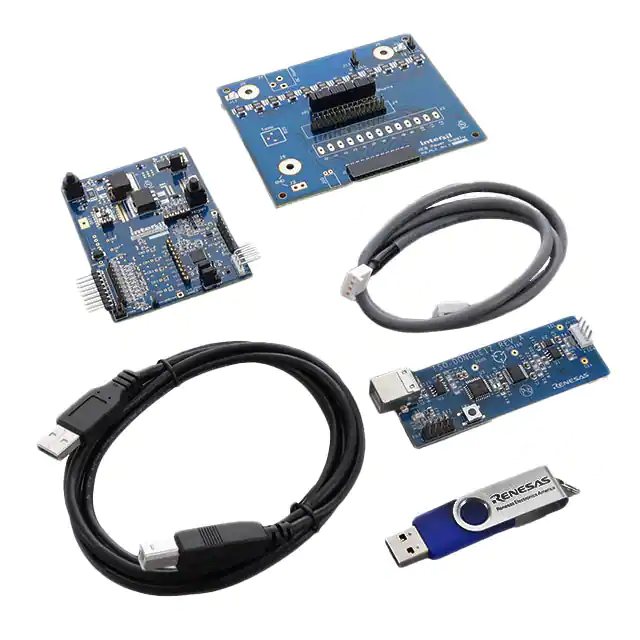

ISL94202EVKIT1ZEVAL BOARD FOR ISL94202 |
14 |
|
Datasheet |
- | Bulk | Active | Power Management | Battery Monitor | No | ISL94202 | Monitors Current, Voltage, Temperature | On-Board LEDs | Board(s) |
|
AD9520-4/PCBZEVAL BOARD FOR AD9520-4 |
1 |
|
Datasheet |
- | Bulk | Active | Timing | Clock Generator | No | AD9520-4 | 1.4 ~ 1.8GHz Output Frequency | Accepts CMOS, LVDS, or LVPECL References Up to 250MHz | Board(s) |
|
ISL9238EVAL1ZEVAL BOARD FOR ISL9238 |
2 |
|
Datasheet |
- | Bulk | Active | Power Management | Battery Charger | - | ISL9238 | - | - | Board(s) |
|

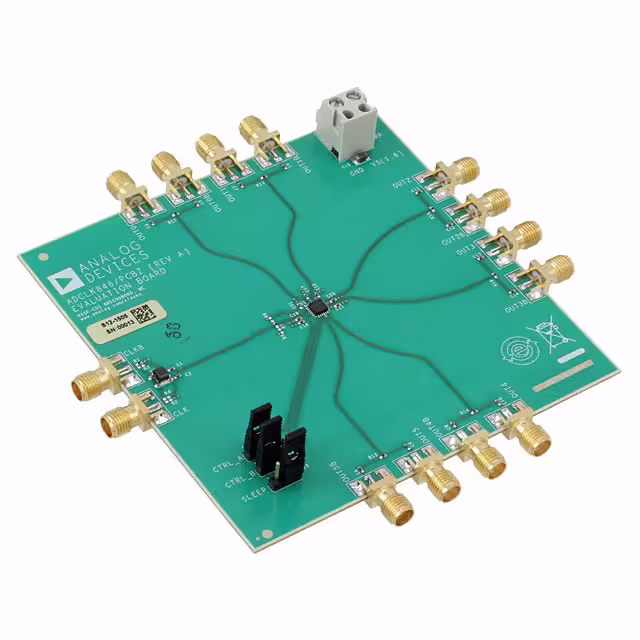

ADCLK846/PCBZEVAL BOARD FOR ADCLK846 |
5 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | - | ADCLK846 | 6 LVDS/12 CMOS Outputs | CMOS, LVDS Outputs | Board(s) |
|
ADCLK854/PCBZEVAL BOARD FOR ADCLK854 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | No | ADCLK854 | 2 Inputs, 12 Outputs | CMOS, LVDS Outputs | Board(s) |
|
|
AD9557/PCBZEVAL BOARD FOR AD9557 |
1 |
|
Datasheet |
- | Box | Active | Timing | Clock Buffer/Driver/Receiver/Translator | - | AD9557 | - | - | Board(s) |
|
AD9516-0/PCBZEVAL BOARD FOR AD9516-0 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | No | AD9516-0 | 2 Inputs, 14 Outputs | - | Board(s) |
|
AD9522-3/PCBZEVAL BOARD FOR AD9522-3 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | No | AD9522-3 | 12 LVDS/24 CMOS Outputs, 2GHz VCO | I2C/SPI Interface(s) | Board(s) |
|
AD9522-4/PCBZEVAL BOARD FOR AD9522-4 |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | No | AD9522-4 | 12 LVDS/24 CMOS Outputs, 1.6GHz VCO | I2C/SPI Interface(s) | Board(s) |
|
AD9520-1/PCBZEVAL BOARD FOR AD9520-1 |
1 |
|
Datasheet |
- | Bulk | Active | Timing | Clock Generator | No | AD9520-1 | 12 LVPECL/24 CMOS Output Clock Generator with 2.5GHz VCO | I2C/SPI Interface(s) | Board(s), Cable(s), Power Supply |
|

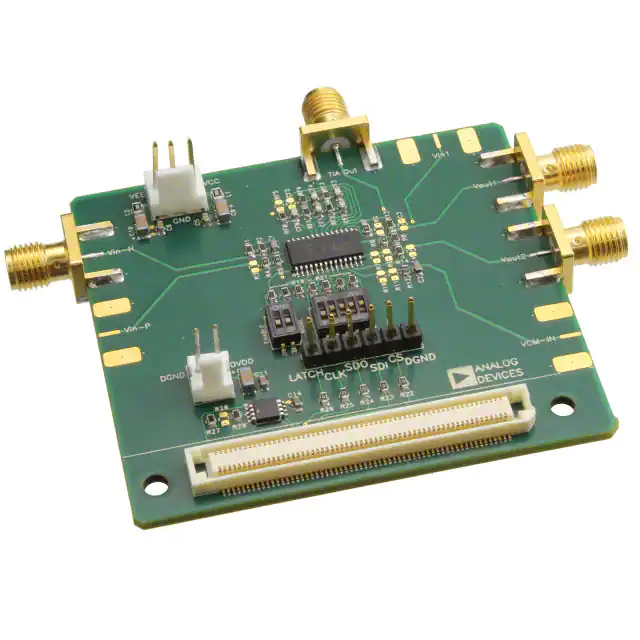

EVAL-ADA4350RUZ-PEVAL BOARD FOR ADA4350 |
6 |
|
Datasheet |
- | Box | Active | Interface | Analog Front End (AFE) | No | ADA4350 | - | SPI Interface(s) | Board(s) |
|
|
PTN38003A-EVMEVAL BOARD FOR PTN38003A |
4 |
|
Datasheet |
- | Bulk | Not For New Designs | Interface | Re-Driver | No | PTN38003A | - | USB Interface(s) | Board(s) |
|
EVAL-ADAU1372ZEVAL BOARD FOR ADAU1372 |
2 |
|
Datasheet |
- | Box | Active | Audio | CODEC | - | ADAU1372 | - | Graphical User Interface (GUI) | Board(s), Cable(s) |
|
AD9518-4A/PCBZEVAL BOARD FOR AD9518-4A |
2 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | No | AD9518-4A | 2 Inputs, 14 Outputs, 1.6GHz VCO | LVPECL Output Logic | Board(s) |
|
AD9554/PCBZEVAL BOARD FOR AD9554 |
1 |
|
Datasheet |
- | Box | Active | Timing | Clock Generator | - | AD9554 | - | On-Board LEDs | Board(s) |
|
EVALM12ED2106STOBO1EVAL BOARD FOR M12ED2106S |
2 |
|
Datasheet |
- | Bulk | Active | Power Management | Motor Controller/Driver, Stepper | - | M12ED2106S | - | - | Board(s) |
|
LMG3411EVM-029EVAL BOARD FOR LMG3411R070 |
3 |
|
Datasheet |
- | Box | Active | Power Management | Half H-Bridge Driver (Internal FET) | - | LMG3411R070 | Isolated | On-Board LEDs, Test Points | Board(s) |
