Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1034322WIRE DRAW ENCODER ABS |
0 |
|
Datasheet |
HighLine | Bulk | Active | - | Absolute | Commutation | - | 10V ~ 32V | Cable Pull | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
1034310WIRE DRAW ENCODER ABS |
0 |
|
Datasheet |
HighLine | Bulk | Active | - | Absolute | Commutation | - | 10V ~ 32V | Cable Pull | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
1036163ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
|
1035442ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1036164ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
|
1030070ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1030071ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1036167ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
|
1036165ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
|
1030080ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1030081ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1035448ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | SSI | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Cable | - | - | - |
|
|
1036166ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
|
1036168ABSOL LINEAR ENCODER |
0 |
|
Datasheet |
KH53 | Bulk | Active | - | Magnetic | Commutation | - | 10V ~ 32V | Shaft | No | No | Flange Mount | User Selectable | Connector | - | - | - |
|
600128B66ROTARY ENCODER OPTICAL 128PPR |
0 |
|
- |
600 | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 10M | - | - |
|
600128C24ROTARY ENCODER OPTICAL 128PPR |
0 |
|
- |
600 | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
3315C-001-006ROTARY ENCODER MECHANICAL 6PPR |
0 |
|
Datasheet |
3315 | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
3315Y-001-006ROTARY ENCODER MECHANICAL 6PPR |
0 |
|
Datasheet |
3315 | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

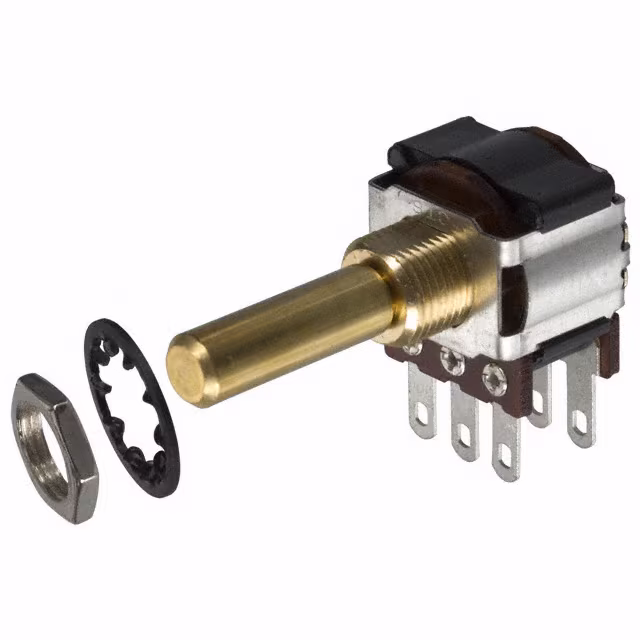

288T232R162A1ROTARY ENCODER MECHANICAL 16PPR |
0 |
|
Datasheet |
288 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Round End | No | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|
|
EVQ-VEMF0224BROTARY ENCODER MECHANICAL 24PPR |
0 |
|
- |
EVQV | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
