Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSA-EB2P-02SW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SSA-EB1P-22SW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-2NO/2NC | On-Off, Off-On | - | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
3SU11501HA201CG0SWITCH E-STOP PULL RESET 10A |
1 |
|
Datasheet |
3SU1 | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | - | - | Circular - 22.30mm Dia | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
SSA-EB2P-22SW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | 4PST-2NO/2NC | On-Off, Off-On | - | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SSA-EB1PL1-13SW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | 4PST-3NC/1NO | On-Off, Off-On | Illuminated (Red) | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
6036492SWITCH ESTOP TWIST RESET 3A 250V |
1 |
|
Datasheet |
ES21 | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | Status Indicator | 3A (AC), 2A (DC) | 250 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -30°C ~ 70°C | - |
|
|
A22NE-S-P202-NSWITCH ESTOP TWIST RESET 5A 125V |
1 |
|
Datasheet |
A22NE-P | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
|
A22NE-M-P102-BSWITCH ESTOP TWIST RESET 5A 125V |
1 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 55°C | 12 VAC/DC |
|
|
A22NE-M-P212-NSWITCH ESTOP TWIST RESET 5A 125V |
0 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
|
A22NE-S-P222-NSWITCH ESTOP TWIST RESET 5A 125V |
0 |
|
Datasheet |
A22NE-P | Box | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
A22NE-MP-P202-N-69KSWITCH E-STOP 10A 120V |
0 |
|
Datasheet |
A22NE-P | Tray | Active | Panel Mount, Front | - | DPST-NC | On-Off | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Spring Terminal | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -20°C ~ 70°C | - |
|
|
6036147SWITCH ESTOP TWIST RESET 3A 250V |
1 |
|
Datasheet |
ES21 | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure, Status Indicator | 3A (AC), 2A (DC) | 250 V | 24 V | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22E-M-03-EMSSW E-STOP TWIST RESET 10A 110V |
1 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | EMS Marking | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
|
SSA-EB1MP-02SW E-STOP KEY LOCK RESET 2A 30V |
1 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Key Lock | DPST-NC | On-Off | - | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22EL-M-T1-02SW E-STOP TWIST RESET 10A 110V |
1 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 110 VAC |
|
|
SSA-EB1ML1P-13SW E-STOP KEY LOCK RESET 2A 24V |
0 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Key Lock | 4PST-3NC/1NO | On-Off, Off-On | Illuminated (Red) | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
SSA-EB1P-02ED1Q4ASW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
SSA-EB1P-11ED1Q4SW ESTOP PULL/TWIST RESET 2A 24V |
0 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | DPST-NO/NC | On-Off, Off-On | Control Box Enclosure | 2A (DC) | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
SSA-EB1P-02ECQ5BSW ESTOP PULL/TWIST RESET 2A 30V |
1 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|

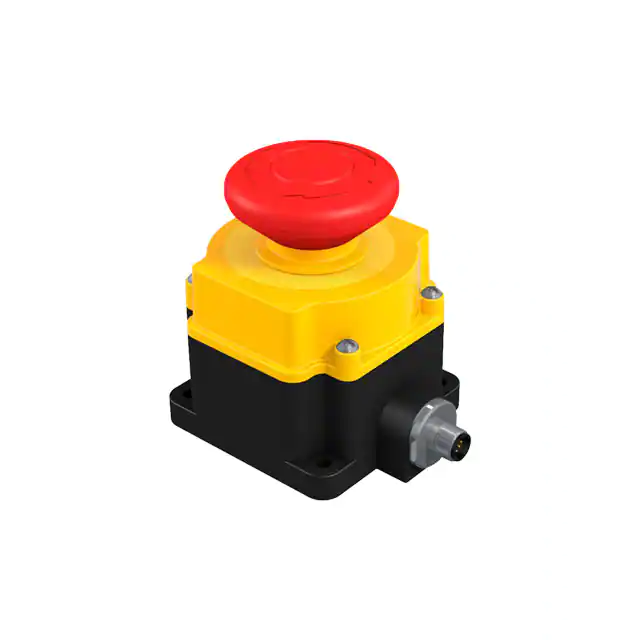

SSA-EB2P-02ED1Q5BSW ESTOP PULL/TWIST RESET 2A 24V |
1 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Pull or Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
