Buzzer Elements, Piezo Benders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency | Voltage - Input (Max) | Type | Impedance | Capacitance @ Frequency | Operating Temperature | Size / Dimension | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB2040S-LW100-RBUZZER ELEMENT STD 4KHZ 20MM |
2,745 |
|
Datasheet |
AB | Bulk | Active | 4 kHz | 30V p-p | Standard | 350 Ohms | 22000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|
AB4108ABUZZER ELEMENT STD 800HZ 41MM |
211 |
|
Datasheet |
- | Bulk | Active | 800 Hz | 30V p-p | Standard | 600 Ohms | 75000pF @ 120Hz | -20°C ~ 70°C | 1.614" Dia (41.00mm) | None |
|
|
AB3528B-LW100-RBUZZER ELEMENT FDBK 2.8 KHZ 35MM |
826 |
|
Datasheet |
AB | Tray | Active | 2.8 kHz | 30V p-p | Feedback | 300 Ohms | 30000pF @ 100Hz | -20°C ~ 60°C | 1.378" Dia (35.00mm) | Wire Leads |
|
CPT-3526-L100BUZZER ELEMENT STD 2.6KHZ 35MM |
291 |
|
Datasheet |
CPT | Bag | Active | 2.6 kHz | 30V p-p | Standard | 300 Ohms | 30000pF @ 120Hz | -20°C ~ 60°C | 1.378" Dia (35.00mm) | Wire Leads |
|
AB4113BBUZZER ELEMENT STD 1.3KHZ 41MM |
829 |
|
Datasheet |
- | Bulk | Active | 1.3 kHz | 30V p-p | Standard | 200 Ohms | 150000pF @ 1kHz | -20°C ~ 60°C | 1.614" Dia (41.00mm) | None |
|

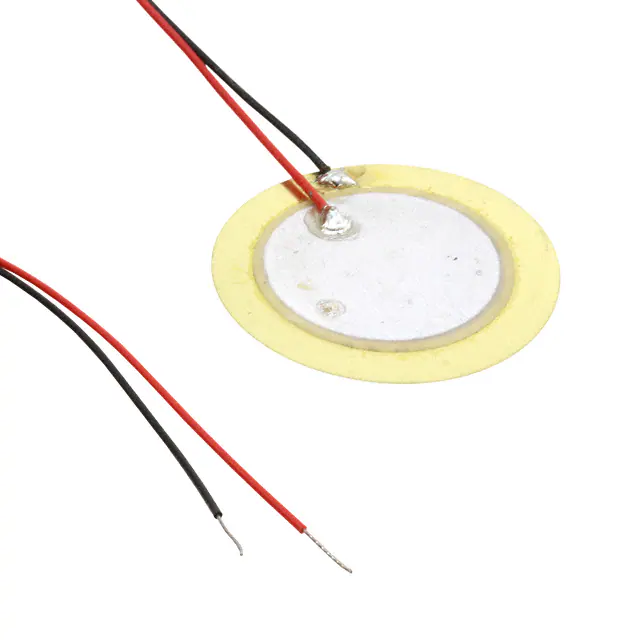

AB2065B-LW100-RBUZZER ELEMENT STD 6.5KHZ 20MM |
3,747 |
|
Datasheet |
AB | Bulk | Active | 6.5 kHz | 30V p-p | Standard | 500 Ohms | 14000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|

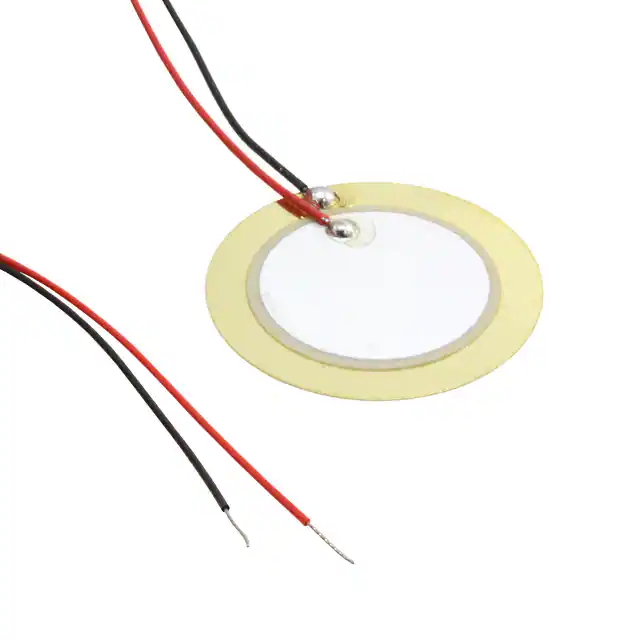

AB2040B-LW100-RBUZZER ELEMENT STD 4KHZ 20MM |
2,796 |
|
Datasheet |
AB | Bulk | Active | 4 kHz | 30V p-p | Standard | 350 Ohms | 25000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|

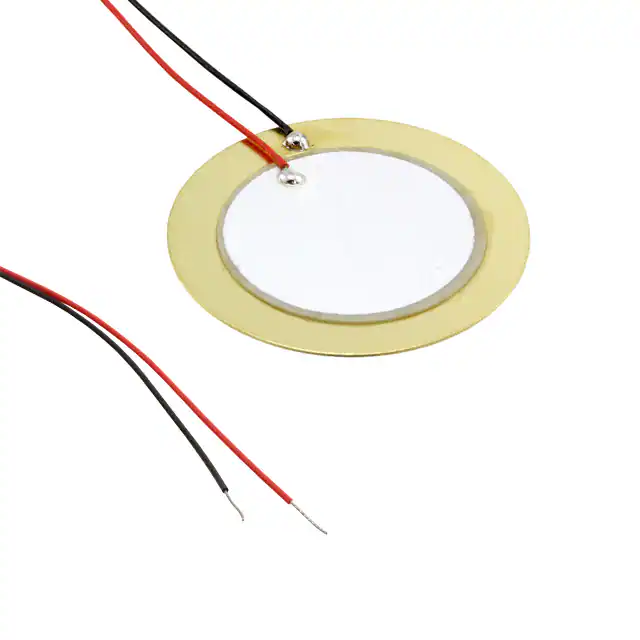

AB2746B-LW100-RBUZZER ELEMENT STD 4.6KHZ 27MM |
766 |
|
Datasheet |
AB | Bulk | Active | 4.6 kHz | 30V p-p | Standard | 250 Ohms | 16000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | Wire Leads |
|

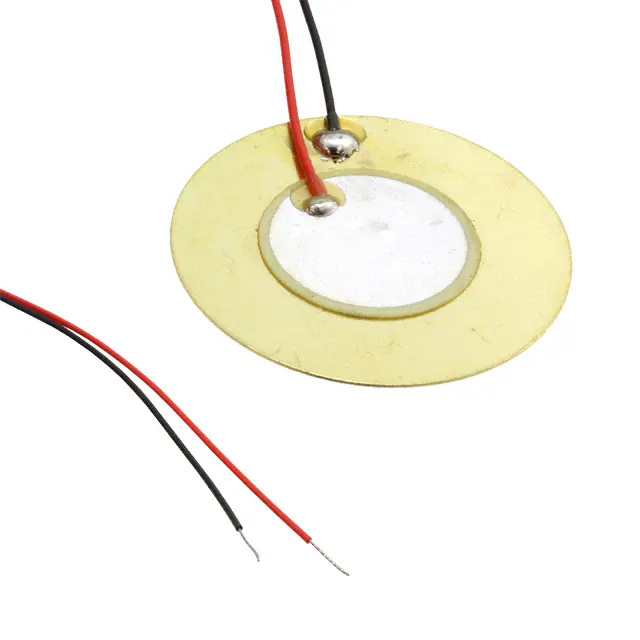

AB2734B-LW100-RBUZZER ELEMENT STD 3.4KHZ 27MM |
209 |
|
Datasheet |
AB | Bulk | Active | 3.4 kHz | 30V p-p | Standard | 1 kOhms | 13000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | Wire Leads |
|
|
AB1548B-3-LW76-RBUZZER ELEMENT STD 4KHZ 15MM |
8,759 |
|
Datasheet |
AB | Bulk | Active | 4 kHz | 20V p-p | Standard | 2 kOhms | 7.5nF @ 1kHz | -20°C ~ 70°C | 0.591" Dia (15.00mm) | None |
|
CEB-44D06BUZZER ELEMENT STD 600HZ 44MM |
142 |
|
Datasheet |
CEB | Bag | Active | 600 Hz | 20V p-p | Standard | 1 kOhms | 70000pF @ 120Hz | -20°C ~ 70°C | 1.732" Dia (44.00mm) | Wire Leads |
|
|
HD-PAB1501BUZZER ELEMENT STD 6.5KHZ 15MM |
331 |
|
Datasheet |
HD-PAB | Tray | Active | 6.5 kHz | 300V p-p | Standard | 600 Ohms | 6500pF @ 120Hz | -40°C ~ 85°C | 0.591" Dia (15.00mm) | None |
|
|
AB1270A-LW100BUZZER ELEMENT STD 7KHZ 12MM |
314 |
|
Datasheet |
- | Bag | Active | 7 kHz | 30V p-p | Standard | 600 Ohms | 15000pF @ 100Hz | -30°C ~ 80°C | 0.472" Dia (12.00mm) | Wire Leads |
|
AB6505BBUZZER ELEMENT STD 520HZ 65MM |
470 |
|
Datasheet |
AB | Bulk | Active | 520 Hz | 80V p-p | Standard | - | 93000pF @ 1kHz | -20°C ~ 60°C | 2.559" Dia (65.00mm) | None |
|
APS4812B-LW100-RBUZZER ELEMENT STD 1.2KHZ 50MM |
200 |
|
Datasheet |
APS | Bulk | Active | 1.2 kHz | 30V p-p | Standard | 3.5 kOhms | 65000pF @ 1kHz | -20°C ~ 70°C | 1.969" Dia (50.00mm) | Wire Leads |
|
|
HD-PAB2701-2BUZZER ELEMENT STD 27MM 75UM |
242 |
|
Datasheet |
- | Bulk | Active | 5 Hz | 155V p-p | Standard | 200 Ohms | 55000pF @ 100Hz | -24°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
|
HD-PAC2102BUZZER ELEMENT STD 14KHZ 21MM |
144 |
|
Datasheet |
HD-PAC | Tray | Active | 14 kHz | 120V p-p | Standard | - | 400000pF @ 1kHz | -25°C ~ 60°C | 0.827" Dia (21.00mm) | None |
|
|
HD-PAS2507BUZ ELEM STD 9KHZ 25MMX7.10MM |
204 |
|
Datasheet |
HD-PAS | Tray | Active | 9 kHz | 50V p-p | Standard | 100 Ohms | 25000pF @ 1kHz | -10°C ~ 70°C | 0.984" L x 0.280" W (25.00mm x 7.10mm) | None |
|
7BB-27-4CBUZZER ELEMENT FDBK 4.6KHZ 27MM |
2,876 |
|
Datasheet |
7BB | Bulk | Last Time Buy | 4.6 kHz | - | Feedback | 200 Ohms | 18000pF @ 1kHz | - | 1.063" Dia (27.00mm) | None |
|
CPT-2065-L100BUZZER ELEMENT STD 6.5KHZ 20MM |
868 |
|
Datasheet |
CPT | Bag | Active | 6.5 kHz | 30V p-p | Standard | 500 Ohms | 14000pF @ 120Hz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
