| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

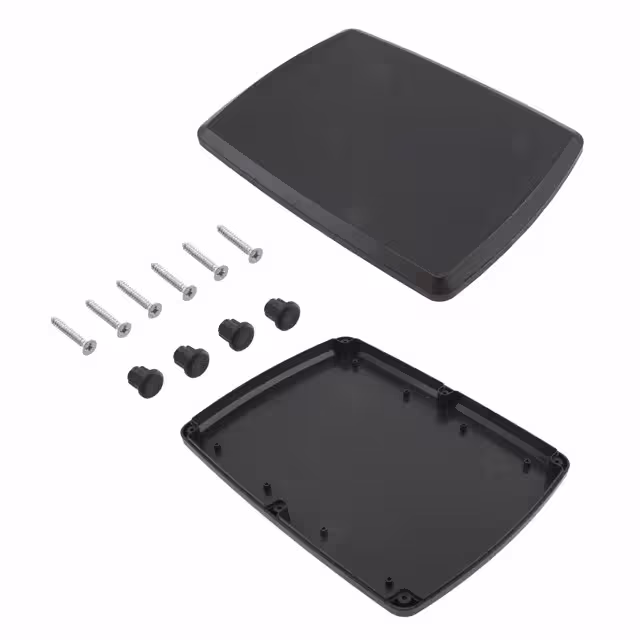

TB-32613-BBOX ABS BLACK 10.98"L X 8.11"W |
0 |
|
Datasheet |
TB | Bulk | Active | Box | 10.984" L x 8.110" W (279.00mm x 206.00mm) | 1.181" (30.00mm) | 89.1in² (575cm²) | Split Sides | Plastic, ABS | Black | 0.091" (2.30mm) | PCB Supports | - | UL94 HB |
|
CU-475-GBOX ALUM GRAY 4.75"L X 4.75"W |
0 |
|
Datasheet |
Econobox | Bulk | Active | Box | 4.750" L x 4.750" W (120.65mm x 120.65mm) | 3.750" (95.25mm) | 22.6in² (146cm²) | Cover Included | Metal, Aluminum | Gray | 0.094" (2.39mm) | - | - | - |
|

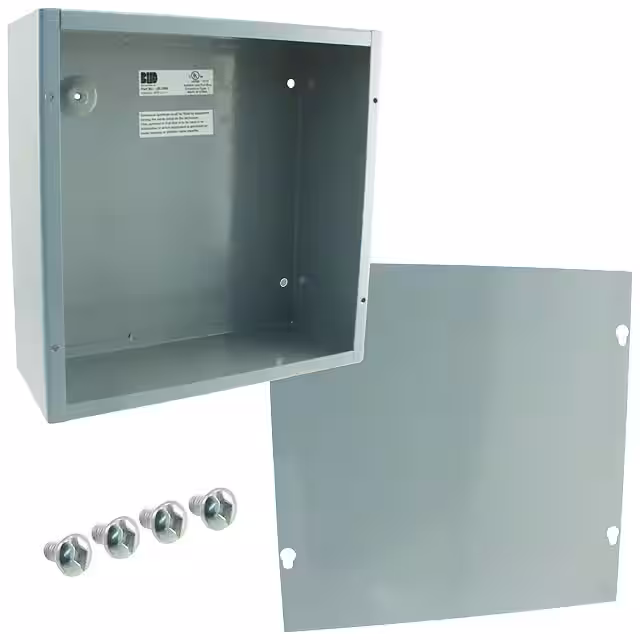

JB-3960BOX STEEL GRAY 10"L X 4"W |
0 |
|
Datasheet |
JB | Box | Active | Box | 10.000" L x 4.000" W (254.00mm x 101.60mm) | 10.000" (254.00mm) | 40.0in² (258cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
|
|
NSYTBS241910HBOX ABS GRAY 7.64""L X 4.21"W |
0 |
|
Datasheet |
- | Bulk | Active | Box | 7.638" L x 4.213" W (194.00mm x 107.00mm) | 9.488" (241.00mm) | 32.0in² (207cm²) | Cover Included | Plastic, ABS | Gray | - | - | IP66, NEMA 4,4X | - |
|
|
AU-1028-MGCABINET ALUM GRAY 5"L X 3"W |
0 |
|
Datasheet |
AU | Bulk | Active | Cabinet | 5.000" L x 3.000" W (127.00mm x 76.20mm) | 4.000" (101.60mm) | 15.0in² (97cm²) | End Panel(s) | Metal, Aluminum | Gray | 0.040" (1.02mm) | - | - | - |
|
|
PRT-16744CASE PLASTIC GRY 8.74"L X 5.75"W |
0 |
|
- |
PRT | Bulk | Active | Case | 8.740" L x 5.750" W (222.00mm x 146.05mm) | 2.170" (55.12mm) | 50.3in² (324cm²) | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP65 | - |
|
17771101HSG PPE BLK 4.685"L X 2.835"W |
0 |
|
Datasheet |
NGS | Bulk | Active | Housing | 4.685" L x 2.835" W (119.00mm x 72.00mm) | 2.835" (72.00mm) | 13.3in² (86cm²) | Open End(s) | Plastic, PPE | Black | - | Flame Retardant, Card Guides | IP40, IP65 | UL94 V-1 |
|
|
NBF-32308BOX ABS/PBT GRY 10.63"L X 3.93"W |
0 |
|
Datasheet |
NBF | Bulk | Active | Box | 10.630" L x 3.930" W (270.00mm x 99.82mm) | 2.750" (69.85mm) | 41.8in² (270cm²) | Hinged Door, Lid | Plastic, ABS/PBT Blend | Gray | 0.115" (2.92mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
BOS 800BOX ABS BLACK 7.72"L X 3.94"W |
0 |
|
Datasheet |
Databoss | Bulk | Active | Box | 7.717" L x 3.937" W (196.00mm x 100.00mm) | 1.575" (40.00mm) | 30.4in² (196cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.098" (2.49mm) | Battery Compartment, 9V and AA, PCB Supports | IP40 | UL94 HB |
|

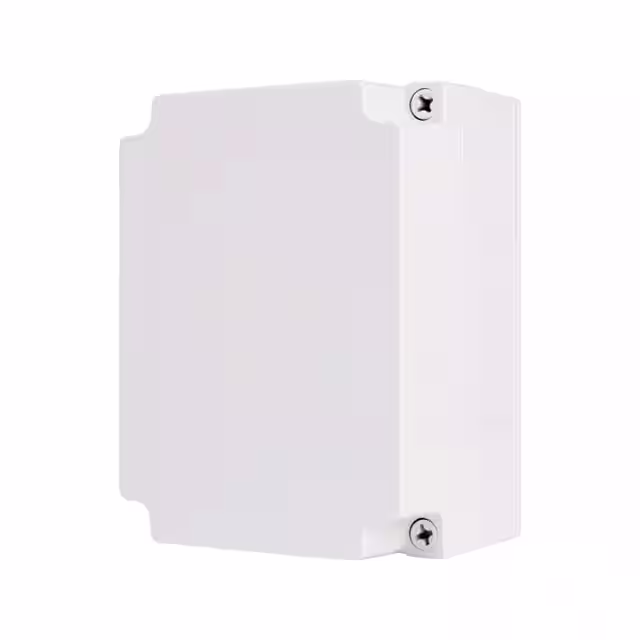

BC-CGS-121710BOX PLAS LGT GRY 6.89"L X 4.92"W |
5 |
|
Datasheet |
S | Bulk | Active | Box | 6.890" L x 4.921" W (175.00mm x 125.00mm) | 3.937" (100.00mm) | 33.9in² (219cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

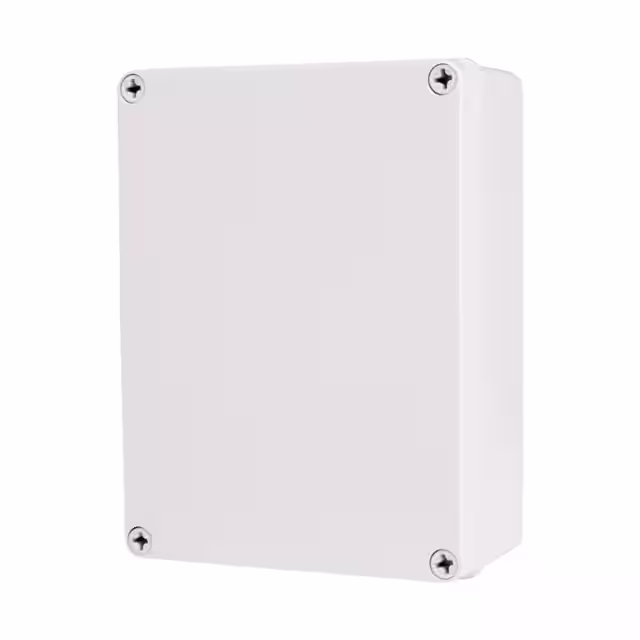

BC-CGS-152007BOX PLAS LGT GRY 7.87"L X 5.91"W |
4 |
|
Datasheet |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 2.953" (75.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

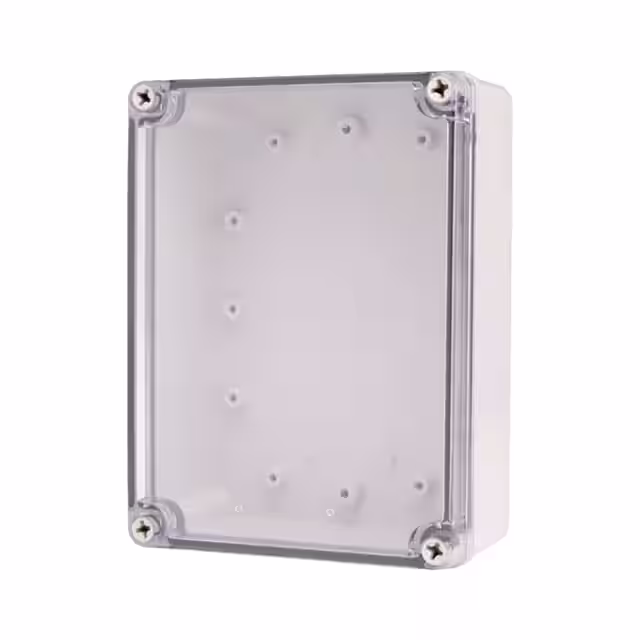

BC-CTS-152007BOX PLASTIC CLR 7.87"L X 5.91"W |
3 |
|
Datasheet |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 2.953" (75.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
6676KBK812 COMPARTMENTED BOX. |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
6678KBK818 COMPARTMENTED BOX |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
6672KBK801 COMPARTMENTED BOX |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
6674KBK806 COMPARTMENTED BOX |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
100-906-01BOX ABS GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.350" (85.09mm) | - | Cover Included, Hand Held | Plastic, ABS | Gray | - | - | IP67, NEMA 4X | UL94 HB |
|

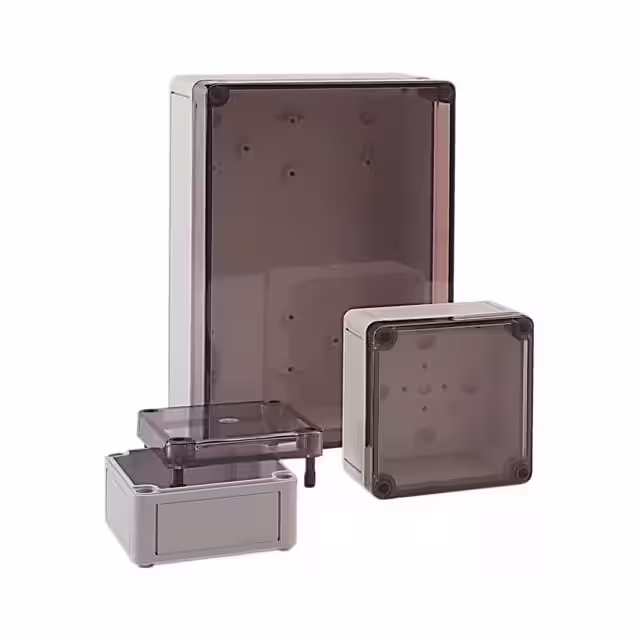

601118220BOX PLASTIC 7.09"L X 4.33"W |
0 |
|
- |
ECO | Bulk | Active | Box | 7.087" L x 4.331" W (180.00mm x 110.00mm) | 4.370" (111.00mm) | 30.7in² (198cm²) | Cover Included | Plastic, Polystyrene | Gray, Clear Cover/Door | 0.138" (3.50mm) | Flame Retardant, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
|
|
150-002BOX ALUM SILVER |
0 |
|
- |
AL | Bulk | Active | Box | - | 1.340" (34.04mm) | - | Cover Included, Hand Held | Metal, Aluminum | Silver | - | - | IP66 | - |
|
17961301HSG PPE BLK 5.551"L X 3.780"W |
0 |
|
Datasheet |
NGS | Bulk | Active | Housing | 5.551" L x 3.780" W (141.00mm x 96.00mm) | 3.780" (96.00mm) | 21.0in² (135cm²) | Open End(s) | Plastic, PPE | Black | - | Flame Retardant, Card Guides | IP40, IP65 | UL94 V-1 |
