Upload BOM
Boxes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50250CASE PLASTIC BLACK 12"L X 9"W |
0 |
|
Datasheet |
Infinity | Bulk | Active | Case | 12.000" L x 9.000" W (304.80mm x 228.60mm) | 2.500" (63.50mm) | 108in² (697cm²) | Hinged Door, Lid | Plastic, Conductive | Black | - | Handles | - | - |
|
1455NF1601BKBOX ALUM BLACK 6.3"L X 4.06"W |
0 |
|
Datasheet |
1455 | Bulk | Active | Box | 6.299" L x 4.055" W (159.99mm x 103.00mm) | 2.090" (53.09mm) | 25.6in² (165cm²) | End Panel(s) | Aluminum | Black | 0.059" (1.50mm) | - | - | - |
|
|
806-407JUNCT BOX PLAS 4.330"L X 4.330"W |
0 |
|
- |
- | Bulk | Active | Junction Box | 4.330" L x 4.330" W (109.98mm x 109.98mm) | 2.640" (67.06mm) | 18.6in² (120cm²) | Cover Included, Hand Held | Plastic, Polystyrene | Light Gray | - | - | IP54, IP65 | - |
|
|
1342917HOUSING SET |
0 |
|
- |
ME | Bulk | Active | Housing | 2.738" L x 0.886" W (69.55mm x 22.50mm) | 3.346" (85.00mm) | 2.48in² (16.0cm²) | Cover Included | Plastic, Polyamide | Light Gray | - | - | IP20 | UL94 V-0 |
|

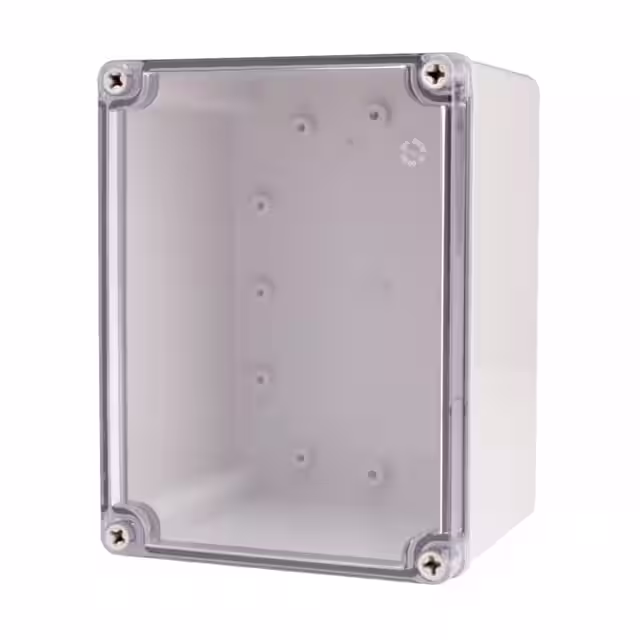

BC-ATS-152013BOX ABS CLEAR 7.87"L X 5.91"W |
4 |
|
Datasheet |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 5.118" (130.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
|
RB55P14C28GBOX PLASTIC GRAY/CLR |
0 |
|
Datasheet |
RB | Bulk | Active | Box | - | 4.130" (104.90mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
|
RB55P14C28BBOX PLASTIC BLK/CLR |
0 |
|
Datasheet |
RB | Bulk | Active | Box | - | 4.130" (104.90mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Black, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
|
100-406-01BOX ABS GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 2.170" (55.12mm) | - | Cover Included, Hand Held | Plastic, ABS | Gray | - | - | IP67, NEMA 4X | UL94 HB |
|
BOS 807BOX ABS BLACK 7.72"L X 3.94"W |
0 |
|
Datasheet |
Databoss | Bulk | Active | Box | 7.717" L x 3.937" W (196.00mm x 100.00mm) | 1.575" (40.00mm) | 30.4in² (196cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.098" (2.49mm) | Battery Compartment, AA, PCB Supports | IP40 | UL94 HB |
|
|
SH7-9 PLAINCABINET ALUM 8.88"L X 8"W |
0 |
|
- |
Uni-Pac | Bulk | Active | Cabinet | 8.875" L x 8.000" W (225.43mm x 203.20mm) | 6.813" (173.05mm) | 71.0in² (458cm²) | End Panel(s) | Metal, Aluminum | Unpainted | 0.125" (3.18mm) | Handles | - | - |
|

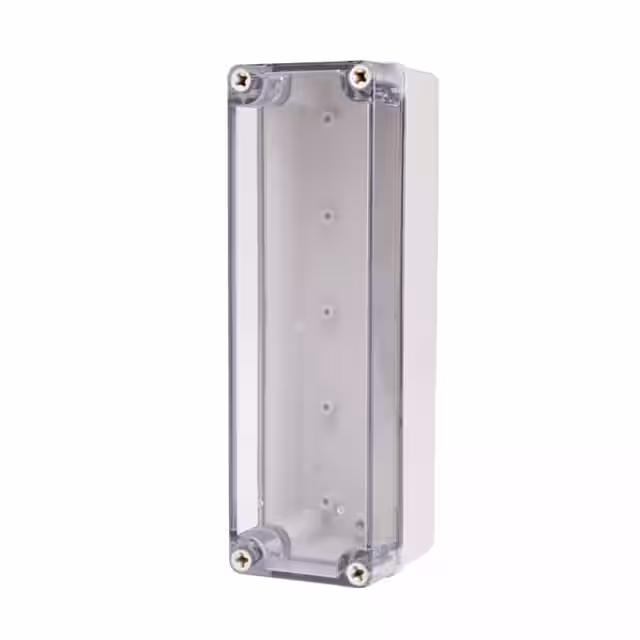

BC-CTS-082508BOX PLASTIC CLR 9.84"L X 3.15"W |
3 |
|
Datasheet |
S | Bulk | Active | Box | 9.843" L x 3.150" W (250.00mm x 80.00mm) | 3.346" (85.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
AN-1314-ABBOX ALUM BLACK 4.9"L X 3.14"W |
0 |
|
Datasheet |
AN-A | Bulk | Active | Box | 4.900" L x 3.140" W (124.46mm x 79.76mm) | 2.265" (57.53mm) | 15.3in² (99cm²) | Cover Included | Metal, Aluminum | Black | 0.120" (3.05mm) | PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
|
200-903-01BOX PLASTIC GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.350" (85.09mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67, NEMA 4X | UL94 V-2 |
|
|
200-903-91BOX PLASTIC GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.350" (85.09mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67, NEMA 4X | UL94 V-2 |
|
|
201-503-91BOX PC GRAY 3.31"L X 3.23"W |
0 |
|
- |
TG | Bulk | Active | Box | 3.310" L x 3.230" W (84.07mm x 82.04mm) | 3.350" (85.09mm) | 10.7in² (69cm²) | Cover Included, Hand Held | Plastic, Polycarbonate (PC) | Gray | - | - | IP67 | - |
|
|
201-503-01BOX PC GRAY 3.31"L X 3.23"W |
0 |
|
- |
TG | Bulk | Active | Box | 3.310" L x 3.230" W (84.07mm x 82.04mm) | 3.350" (85.09mm) | 10.7in² (69cm²) | Cover Included, Hand Held | Plastic, Polycarbonate (PC) | Gray | - | - | IP67 | - |
|
|
NSYTBP1397BOX PLAS LGT GRY 5.43"L X 3.66"W |
0 |
|
Datasheet |
- | Bulk | Active | Box | 5.433" L x 3.661" W (138.00mm x 93.00mm) | 2.835" (72.00mm) | 19.8in² (128cm²) | Cover Included | Plastic, Polycarbonate | Light Gray | 0.256" (6.50mm) | - | IP66 | - |
|
17960801HSG PPE BLK 3.346"L X 3.780"W |
0 |
|
Datasheet |
NGS | Bulk | Active | Housing | 3.780" L x 3.346" W (96.00mm x 85.00mm) | 3.780" (96.00mm) | 12.6in² (81cm²) | Open End(s) | Plastic, PPE | Black | - | Flame Retardant, Card Guides | IP40, IP65 | UL94 V-1 |
|
BC-CGS-121707BOX PLAS LGT GRY 6.89"L X 4.92"W |
2 |
|
Datasheet |
S | Bulk | Active | Box | 6.890" L x 4.921" W (175.00mm x 125.00mm) | 2.953" (75.00mm) | 33.9in² (219cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
17941301HSG PPE BLK 5.551"L X 3.780"W |
0 |
|
Datasheet |
NGS | Bulk | Active | Housing | 5.551" L x 3.780" W (141.00mm x 96.00mm) | 1.890" (48.00mm) | 21.0in² (135cm²) | Open End(s) | Plastic, PPE | Black | - | Flame Retardant, Card Guides | IP40, IP65 | UL94 V-1 |
