Boxes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
051,ALBOX ABS ALMOND 5.62"L X 3.25"W |
0 |
|
- |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 0.900" (22.86mm) | 18.3in² (118cm²) | Cover Included, Hand Held | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
051,GYBOX ABS GRAY 5.62"L X 3.25"W |
0 |
|
- |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 0.900" (22.86mm) | 18.3in² (118cm²) | Cover Included, Hand Held | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

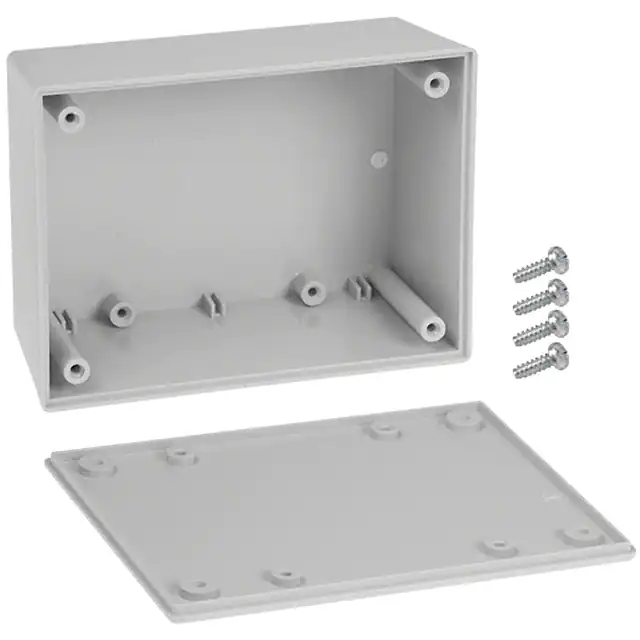

033,GYBOX ABS GRAY 4.38"L X 3.25"W |
0 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.900" (48.26mm) | 14.2in² (92cm²) | Cover Included, Hand Held | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
033,ALBOX ABS ALMOND 4.38"L X 3.25"W |
0 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.900" (48.26mm) | 14.2in² (92cm²) | Cover Included, Hand Held | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
131I,ALBOX ABS ALMOND 4.38"L X 3.25"W |
0 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.500" (38.10mm) | 14.2in² (92cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
|
033I,ALBOX ABS ALMOND 4.38"L X 3.25"W |
0 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.900" (48.26mm) | 14.2in² (92cm²) | Cover Included, Hand Held | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
|
033I,GYBOX ABS GRAY 4.38"L X 3.25"W |
0 |
|
Datasheet |
S | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.900" (48.26mm) | 14.2in² (92cm²) | Cover Included, Hand Held | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

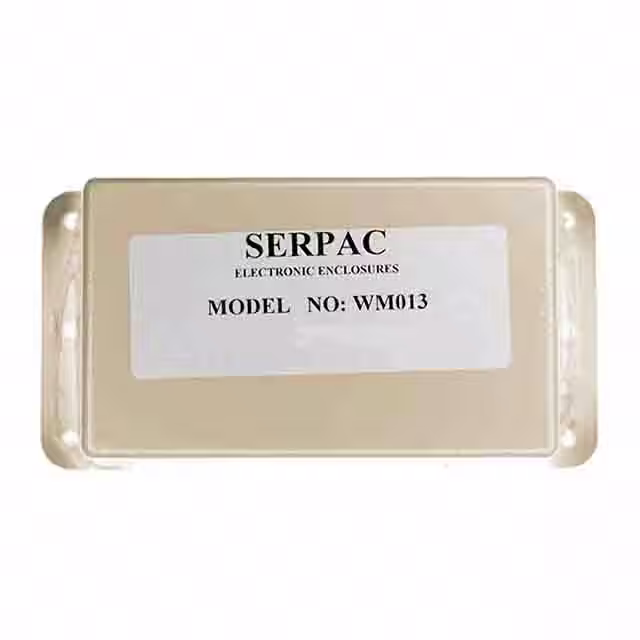

WM013,ALBOX ABS ALMOND 3.6"L X 2.25"W |
0 |
|
Datasheet |
WM | Box | Active | Box | 3.600" L x 2.250" W (91.44mm x 57.15mm) | 2.100" (53.34mm) | 8.10in² (52.3cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

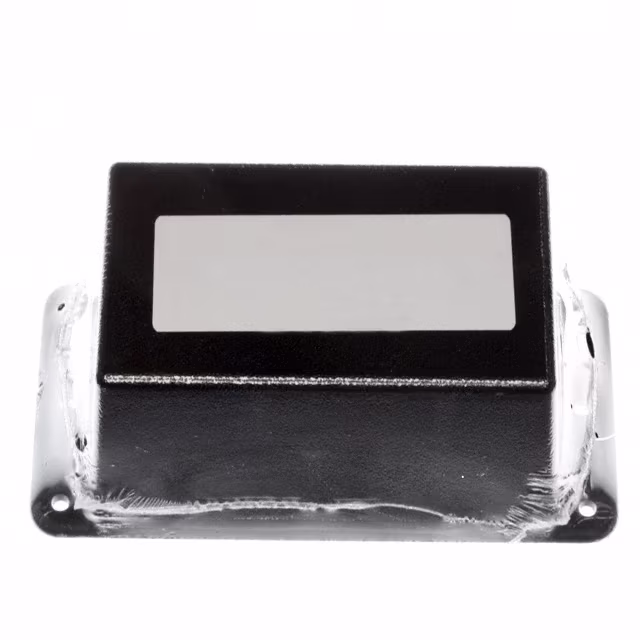

WM013,BKBOX ABS BLACK 3.6"L X 2.25"W |
0 |
|
Datasheet |
WM | Box | Active | Box | 3.600" L x 2.250" W (91.44mm x 57.15mm) | 2.100" (53.34mm) | 8.10in² (52.3cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

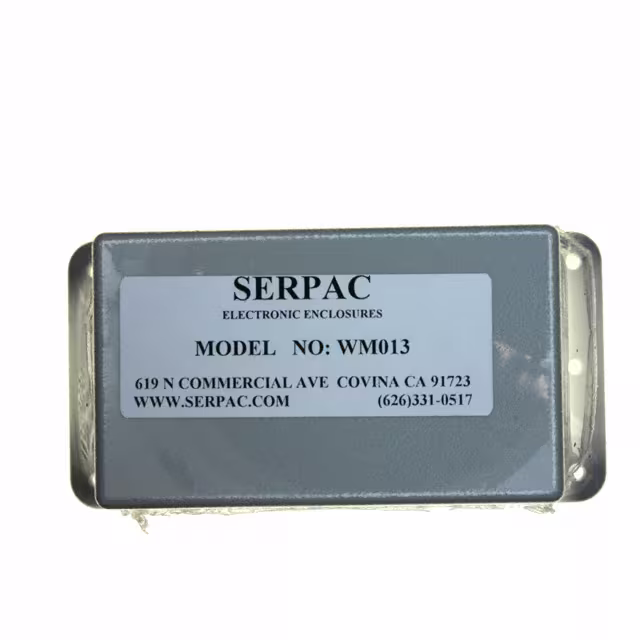

WM013,GYBOX ABS GRAY 3.6"L X 2.25"W |
0 |
|
Datasheet |
WM | Box | Active | Box | 3.600" L x 2.250" W (91.44mm x 57.15mm) | 2.100" (53.34mm) | 8.10in² (52.3cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

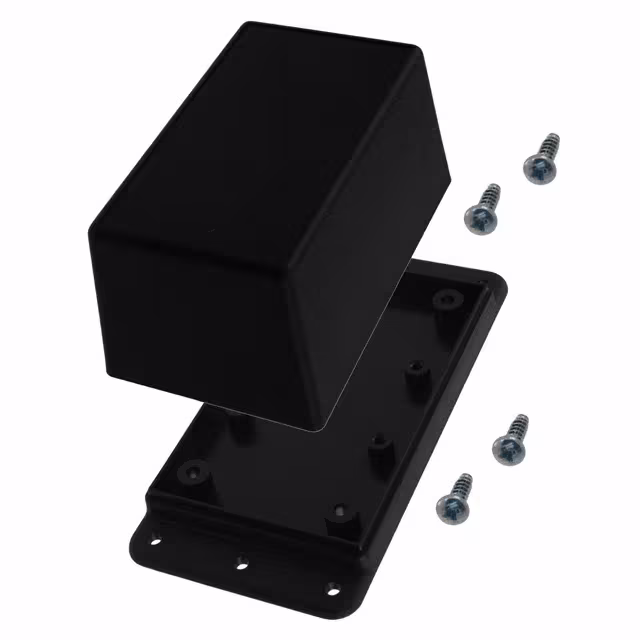

WM013I,BKBOX ABS BLACK 3.6"L X 2.25"W |
0 |
|
Datasheet |
WM | Bulk | Active | Box | 3.600" L x 2.250" W (91.44mm x 57.15mm) | 2.100" (53.34mm) | 8.10in² (52.3cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

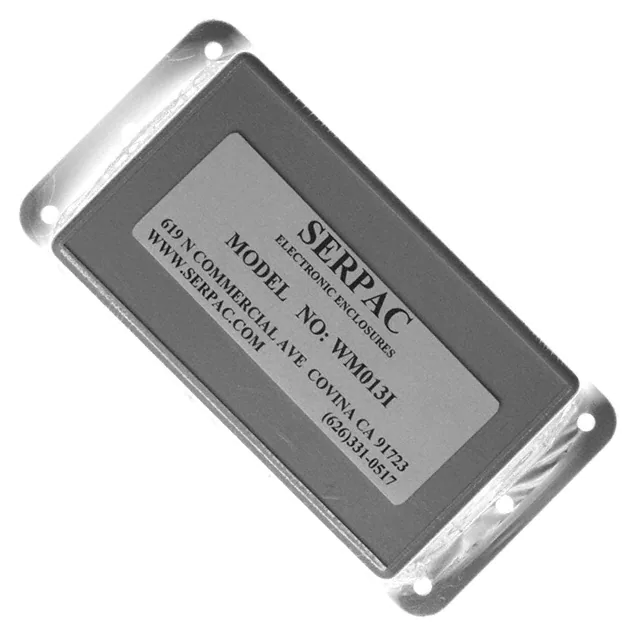

WM013I,GYBOX ABS GRAY 3.6"L X 2.25"W |
0 |
|
Datasheet |
WM | Bulk | Active | Box | 3.600" L x 2.250" W (91.44mm x 57.15mm) | 2.100" (53.34mm) | 8.10in² (52.3cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
PERF-100 PLAINCHASSIS ALUM 2.75"L X 2.13"W |
0 |
|
Datasheet |
- | Bulk | Active | Chassis | 2.750" L x 2.125" W (69.85mm x 53.98mm) | 2.625" (66.68mm) | 5.84in² (37.7cm²) | Perforated, U Shaped Pieces | Metal, Aluminum | Unpainted | 0.050" (1.27mm) | Vented Panels | - | - |
|
|
639HOUSING PLAS 2.38"L X 1.75"W |
0 |
|
Datasheet |
- | Bulk | Obsolete | Housing | 2.375" L x 1.750" W (60.33mm x 44.45mm) | 2.563" (65.10mm) | 4.16in² (26.8cm²) | Open End(s) | Plastic, Polystyrene | Translucent - Clear | - | - | - | - |
|
|
710HOUSING PLAS 2.38"L X 1.75"W |
0 |
|
Datasheet |
- | Bulk | Obsolete | Housing | 2.375" L x 1.750" W (60.33mm x 44.45mm) | 2.563" (65.10mm) | 4.16in² (26.8cm²) | Open End(s) | Plastic, Polystyrene | Black | - | - | - | - |
|

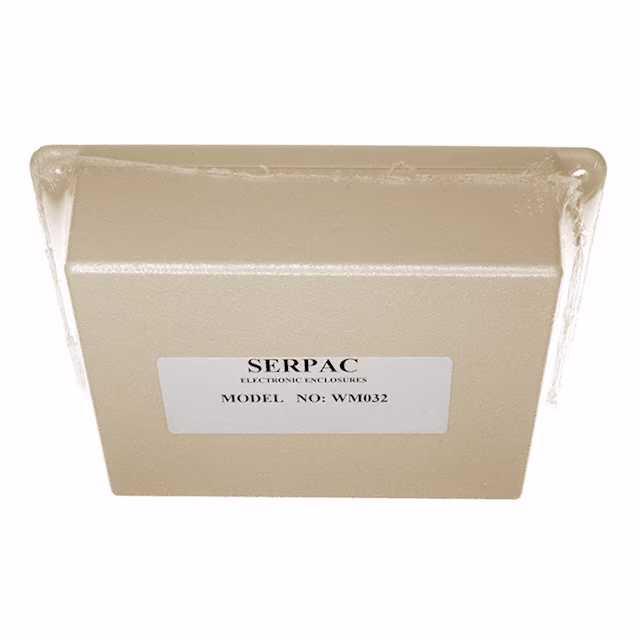

WM032,ALBOX ABS ALMOND 4.38"L X 3.25"W |
0 |
|
Datasheet |
WM | Box | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|

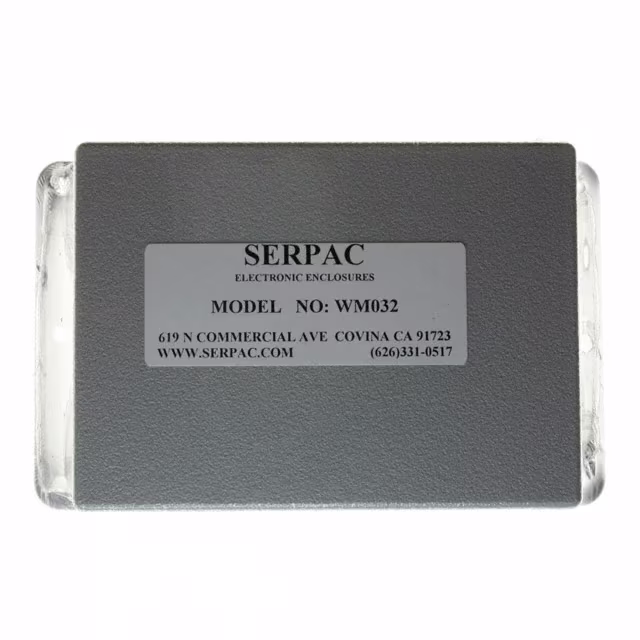

WM032,GYBOX ABS GRAY 4.38"L X 3.25"W |
0 |
|
Datasheet |
WM | Box | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM032I,ALBOX ABS ALMOND 4.38"L X 3.25"W |
0 |
|
Datasheet |
WM | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM032I,BKBOX ABS BLACK 4.38"L X 3.25"W |
0 |
|
Datasheet |
WM | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
BC-ATS-081307BOX ABS CLEAR 5.12"L X 3.15"W |
4 |
|
Datasheet |
S | Bulk | Active | Box | 5.118" L x 3.150" W (130.00mm x 80.00mm) | 2.756" (70.00mm) | 16.1in² (104cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
