Single, Pre-Biased Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DTD513ZE3TLTRANS PREBIAS NPN 12V 0.5A EMT3 |
2,587 |
|
Datasheet |
- | SC-75, SOT-416 | Tape & Reel (TR) | Active | NPN - Pre-Biased + Diode | 500 mA | 12 V | 1 kOhms | 10 kOhms | 140 @ 100mA, 2V | 300mV @ 5mA, 100mA | 500nA | 260 MHz | 150 mW | - | - | Surface Mount | EMT3 |
|
DTD123EKT146TRANS PREBIAS NPN 50V 0.5A SMT3 |
7,768 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 500 mA | 50 V | 2.2 kOhms | 2.2 kOhms | 39 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
|
DTB114EKT146TRANS PREBIAS PNP 50V 0.5A SMT3 |
6,408 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 500 mA | 50 V | 10 kOhms | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
|
DTB123YKT146TRANS PREBIAS PNP 50V 0.5A SMT3 |
1,603 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 500 mA | 50 V | 2.2 kOhms | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
|
DTD114GKT146TRANS PREBIAS NPN 50V 0.5A SMT3 |
5,650 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 500 mA | 50 V | - | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA (ICBO) | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
|
DTD143EKT146TRANS PREBIAS NPN 50V 0.5A SMT3 |
7,194 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 500 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 47 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SMT3 |
|
DTDG23YPT100TRANS PREBIAS NPN 60V 1A MPT3 |
1,153 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN - Pre-Biased | 1 A | 60 V | 2.2 kOhms | 22 kOhms | 300 @ 500mA, 2V | 400mV @ 5mA, 500mA | 500nA | 80 MHz | 1.5 W | - | - | Surface Mount | MPT3 |
|

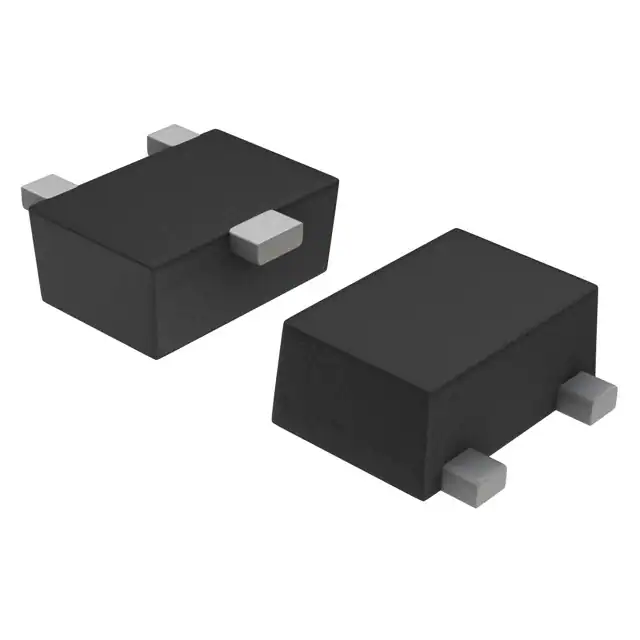

DTA143EM3T5GTRANS PREBIAS PNP 50V SOT723 |
8,000 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 15 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 260 mW | - | - | Surface Mount | SOT-723 |
|
PDTA123YT,215TRANS PREBIAS PNP 50V TO236AB |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 2.2 kOhms | 10 kOhms | 35 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | TO-236AB |
|
DTC115ECAT116TRANS PREBIAS NPN 50V 0.1A SST3 |
4,000 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 100 kOhms | 100 kOhms | 82 @ 5mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250 MHz | 200 mW | - | - | Surface Mount | SST3 |
|
RN1104MFV,L3F(CTTRANS PREBIAS NPN 50V 0.1A VESM |
23,791 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 500µA, 5mA | 500nA | - | 150 mW | - | - | Surface Mount | VESM |
|
|
RN2116MFV,L3FTRANS PREBIAS PNP 50V 0.1A VESM |
15,887 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 10 kOhms | 50 @ 10mA, 5V | 300mV @ 500µA, 5mA | 500nA | - | 150 mW | - | - | Surface Mount | VESM |
|
|
RN2107MFV,L3F(CTTRANS PREBIAS PNP 50V 0.1A VESM |
15,200 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 10 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 500µA, 5mA | 500nA | - | 150 mW | - | - | Surface Mount | VESM |
|
|
PDTA144ET,235TRANS PREBIAS PNP 50V TO236AB |
9,880 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | TO-236AB |
|
|
PDTC143XTVLTRANS PREBIAS NPN TO236AB |
8,869 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | - | 4.7 kOhms | 10 kOhms | 50 @ 10mA, 5V | 100mV @ 500µA, 10mA | 1µA | 230 MHz | - | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
|
PDTA115ET,215TRANS PREBIAS PNP 50V TO236AB |
8,299 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 20 mA | 50 V | 100 kOhms | 100 kOhms | 80 @ 5mA, 5V | 150mV @ 250µA, 5mA | 100nA (ICBO) | - | 250 mW | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
RN1131MFV,L3FTRANS PREBIAS NPN 50V 0.1A VESM |
8,000 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 100 kOhms | - | 120 @ 1mA, 5V | 300mV @ 500µA, 5mA | 100nA (ICBO) | - | 150 mW | - | - | Surface Mount | VESM |
|
|
RN1112MFV,L3FTRANS PREBIAS NPN 50V 0.1A VESM |
8,000 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | - | 120 @ 1mA, 5V | 300mV @ 500µA, 5mA | 100nA (ICBO) | - | 150 mW | - | - | Surface Mount | VESM |
|
|
RN2101MFV,L3F(CTTRANS PREBIAS PNP 50V 0.1A VESM |
8,000 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 30 @ 10mA, 5V | 300mV @ 500µA, 5mA | 500nA | 250 MHz | 150 mW | - | - | Surface Mount | VESM |
|
RN2113MFV,L3FTRANS PREBIAS PNP 50V 0.1A VESM |
7,990 |
|
Datasheet |
- | SOT-723 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | 50 V | 47 kOhms | - | 120 @ 1mA, 5V | 300mV @ 500µA, 5mA | 100nA (ICBO) | - | 150 mW | - | - | Surface Mount | VESM |
