Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHM1506BALUN DUAL 50/100 0805 |
329 |
|
Datasheet |
HHM | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 1.92GHz ~ 1.98GHz, 2.11GHz ~ 2.17GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | 10dB | Surface Mount |
|
HHM1518A3BALUN 1.71-1.99GHZ 50/150 0805 |
30 |
|
Datasheet |
HHM | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 1.71GHz ~ 1.99GHz | 50 / 150Ohm | 180° ±10° | 1.0dB | 10dB | Surface Mount |
|
ATB2012E-20011-T06BALUN 13.56MHZ 20/20 0805 |
102 |
|
Datasheet |
ATB | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 13.56MHz | 20 / 20Ohm | - | 1.0dB | - | Surface Mount |
|
PE2BL100350 Ohm to 25 Ohm Balun From 80 M |
18 |
|
Datasheet |
- | 3-SMD Module | Retail Package | Active | 80MHz ~ 1GHz | 50 / 25Ohm | 180° | 0.45dB | - | Surface Mount |
|
|
PE2BL100050 Ohm to 25 Ohm Balun From 225 |
13 |
|
Datasheet |
- | 3-SMD Module | Retail Package | Active | 225MHz ~ 2GHz | 50 / 25Ohm | 180° | 0.45dB | - | Surface Mount |
|
|
PE2BL100450 Ohm to 25 Ohm Balun From 100 |
23 |
|
Datasheet |
- | 3-SMD Module | Retail Package | Active | 100MHz ~ 520MHz | 50 / 25Ohm | 180° | 0.3dB | - | Surface Mount |
|
AB-005-SMBALUN, IN 50, OUT 100 BALANCED |
5 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | 1MHz ~ 1.2GHz | 50 / 100Ohm | - | 3.0dB | 12.73dB | Surface Mount |
|
|
PE2BL100150 Ohm to 25 Ohm Balun From 20 M |
14 |
|
Datasheet |
- | 3-SMD Module | Retail Package | Active | 20MHz ~ 520MHz | 50 / 25Ohm | 180° | 0.45dB | - | Surface Mount |
|
|
PE2BL100250 Ohm to 25 Ohm Balun From 20 M |
9 |
|
Datasheet |
- | 3-SMD Module | Retail Package | Active | 20MHz ~ 1GHz | 50 / 25Ohm | 180° | 0.5dB | - | Surface Mount |
|
|
0850BM14E0016001TBALUN 770MHZ-928MHZ 50/50 0603 |
2 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 770MHz ~ 928MHz | 50 / 50Ohm | 180° ±15° | 1.8dB | 9.5dB | Surface Mount |
.jpg)
|
BD0810J50100AHFBALUN 800MHZ-1GHZ 50/100 0805 |
0 |
|
Datasheet |
Xinger® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 100Ohm | 1° | 0.95dB | 13dB | Surface Mount |
|
|
0896BM15E0025001EBALUN 863MHZ-928MHZ 50/50 0805 |
0 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 863MHz ~ 928MHz | 50 / 50Ohm | 180° ±10° | 1.25dB | - | Surface Mount |
|
|
DXW21BN2511NLCOMMON MODE CHOKES / FILTERS SMD |
0 |
|
Datasheet |
- | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | 13.56MHz | 25 / 25Ohm | - | 1.0dB | - | Surface Mount |
|
TC1-1-43+1:1 CORE & WIRE TRANSFORMER, 650 |
9 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 650MHz ~ 4GHz | 50 / 50Ohm | 4° | 3dB | 7.51dB | Surface Mount |
|
TC4-14+1:4 CORE & WIRE TRANSFORMER, 200 |
0 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 200MHz ~ 1.4GHz | 1:4 | - | 3dB | 5.05dB | Surface Mount |
|

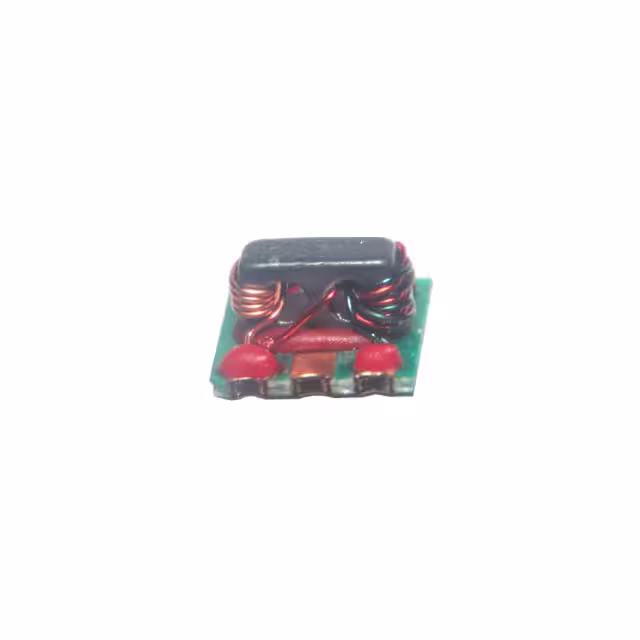

MABA-0110101:1.33 TRANSMISSION LINE TRANSFO |
0 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 1:1.33 | 5° | 1.65dB | 15.5dB | Surface Mount |
|
BALF-NRG-02J550 OHM ULTRA THIN BALUN WITH |
0 |
|
Datasheet |
- | 4-XFBGA, FCBGA | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 4.5° | 1.65dB | 26dB | Surface Mount |
|
RFBLN10050G9D0TRF BALUN TRANSFORMER 900MHZ LTE |
0 |
|
Datasheet |
RFBLN | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 699MHz ~ 960MHz | 50 / 100Ohm | 180° ±10° | 1.3dB | - | Surface Mount |
|
HHM1946A1BALUN 2.3GHZ-2.7GHZ 50/100 0402 |
0 |
|
Datasheet |
HHM | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.7GHz | 50 / 100Ohm | 190° | 0.5dB | -23dB | Surface Mount |
|
HHM1776B2BALUN 824MHZ-894MHZ 50/50 0603 |
0 |
|
Datasheet |
HHM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 824MHz ~ 894MHz | 50 / 50Ohm | 180° ±10° | 1.2dB | 10dB | Surface Mount |
