Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1-D-24VRELAY AUTOMOTIVE SPDT 15A 24V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|

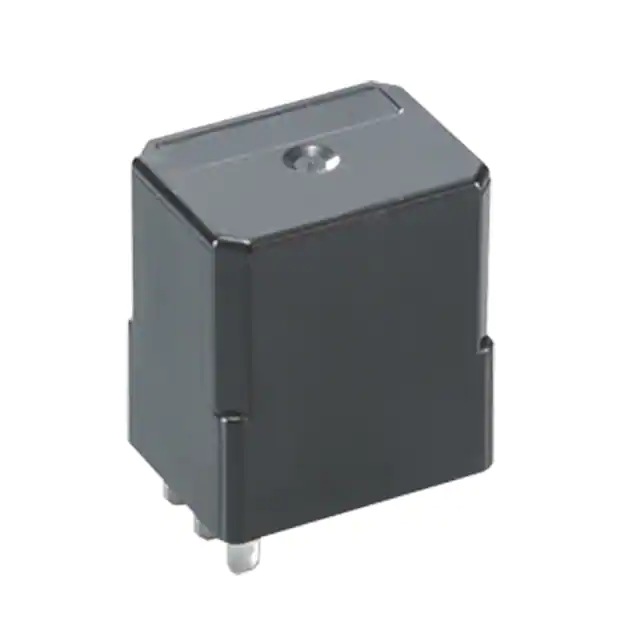

CM1-D-P-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CM1-P-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1-R-P-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|

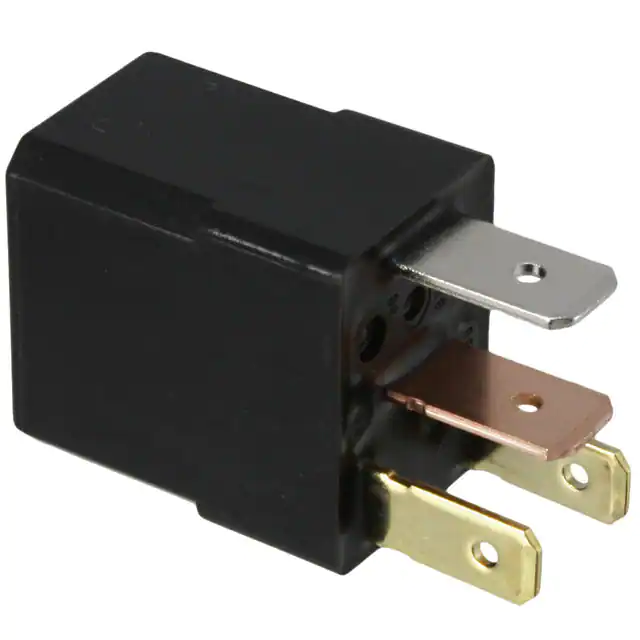

CM1A-D-12VRELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
CM1A-P-12VRELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1A-R-P-12VRELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1AF-D-12VRELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
CM1F-D-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
CM1F-D-24VRELAY AUTOMOTIVE SPDT 15A 24V |
0 |
|
Datasheet |
CM | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
CM1F-D-P-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1F-P-12VRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet |
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
CQ1-12VRELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Datasheet |
CQ | Tube | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CR2-12VRELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Datasheet |
CR | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

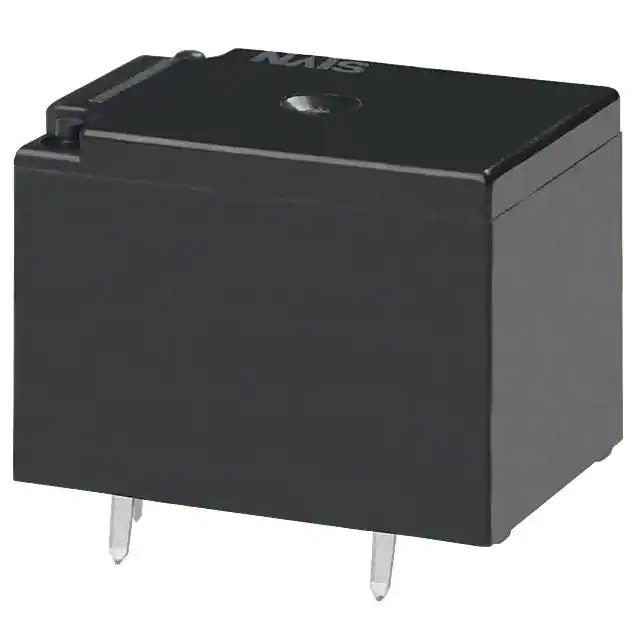

JSM1-9V-4RELAY AUTOMOTIVE SPDT 10A 9V |
0 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 71.4 mA | 9VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 4.7 VDC | 0.7 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1A-12V-4RELAY AUTOMOTIVE SPST 10A 12V |
0 |
|
Datasheet |
JS-M | Tube | Obsolete | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1A-12V-5RELAY AUTOMOTIVE SPST 15A 12V |
0 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1A-9V-4RELAY AUTOMOTIVE SPST 10A 9V |
0 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 71.4 mA | 9VDC | SPST-NO (1 Form A) | 10 A | 16VDC - Max | 4.7 VDC | 0.7 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1A-9V-5RELAY AUTOMOTIVE SPST 15A 9V |
0 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 71.4 mA | 9VDC | SPST-NO (1 Form A) | 15 A | 16VDC - Max | 4.7 VDC | 0.7 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
JSM1AF-12V-4RELAY AUTOMOTIVE SPST 10A 12V |
0 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
